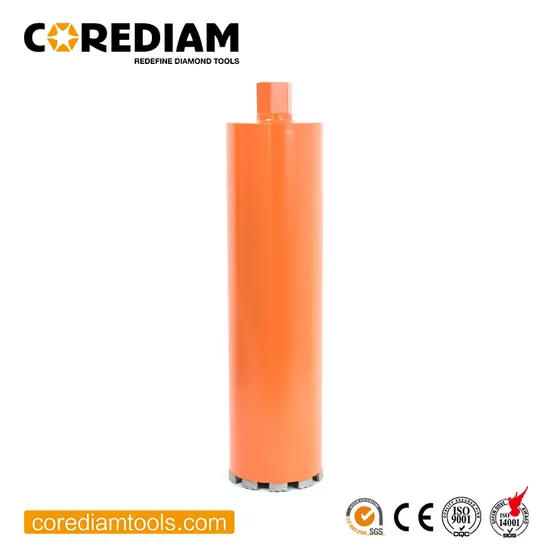

Lightning Segment Diamond Core Drill with 10mm Segment Height/Drilling Tools

Product Description

Product name	diamond core drill bits
Segment types	Lightning segment
Production Process	Laser welding
Product Usage	Wet drilling different hardness of concrete, reinforced concrete
Drilling type	Wet drilling
Use equipment	Core drilling machine,Hand drill

Product Description The wet core drill is laser welded by advanced laser welding production line, which ensures the core bits have high welding strength.
Common sizes of laser welded diamond core drill are ranging 1 '' (25mm) to 14''(350mm) in size.
The core drill is used for professionally wet drilling kinds hardness of concrete, reinforced concrete.
Lightning segment design achieves the sharp and fast drilling performance.
Segments height, working length and connection type can be adjustable on your request.
Features:
1. Laser welded technology.
2. Lightning segment.
3. Different Quality level to choose.
4. Suitable: wet drilling concrete, reinforced concrete, masonary with superior efficiency.
5. Sharp and fast drilling speed with stable long lifespan.
Specifications:

Item No.	Diameter	Segment Height	Arbor	Effective Length
CWDF5245010	52mm	10	1-1/4" UNC	450mm
CWDF7745010	77mm	10	1-1/4" UNC	450mm
CWDF10245010	102mm	10	1-1/4" UNC	450mm
CWDF11745010	117mm	10	1-1/4" UNC	450mm
CWDF12745010	127mm	10	1-1/4" UNC	450mm
CWDF15245010	152mm	10	1-1/4" UNC	450mm
CWDF25045010	250mm	10	1-1/4" UNC	450mm

Product details:

Package:
Through the white box packaging, the company logo can be marked on the diamond lightning segment core drill bits.
Shipping:

we could ship by Commercial Express,like UPS,DHL,FedEx,we could also ship by air,by sea,by land as your request.

Company Profile The main product ranges include laser welded saw blade, brazing saw blade, sinter hot-pressed saw blade, diamond grinding cup wheel, laser welded core drill, diamond wire etc.
Factory support: Excellent production capacity and strict quality control system guarantee.
4.Delivery time
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
5.Production&Dispatch
6.Corediam service
We accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.
