2.7mm-3.7mm PVC Galvanized Gabion Box Gabion Basket Stone Cage Retaining Wall Cage Gabion

Product Description

Superior quality galvanized gabion box Stone Cage Net Rock Filled Gabion Basket

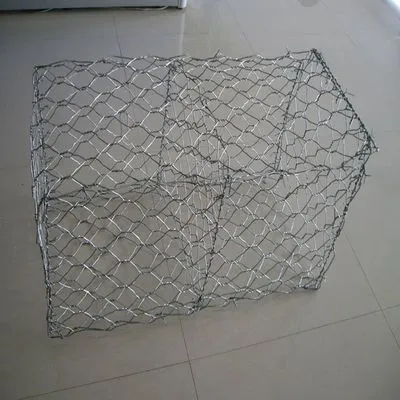

Gabions are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
1.Material: low carbon iron wire , galvanized iron wire , hot dip galvanized iron wire , galvanized steel wire , PVC coated wire, galfan steel wire, stainless steel wire
2.Wire daimeter:2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm
3.Aperture:6x8cm,8x10cm,10x12cm,12X15cm etc.
4.Slevege wire:3.4mm,3.7mm,4.0mm,5mm
5.Lacing wire:2.2mm,2.5mm,2.7mm
6.Size:1x1x1,2x1x0.5,2x1x1,3x1x1,4x1x1
7.Application:
>Controlling and leading the river and flood.
> Flood discharge and lead flow.
>Rock fall defending.
>Preventing the water and soil lost.
>Protecting the bridge.
> Reinforce fabric.
>Seashore recovery project.
Strengthening structure of soil;

Opening (mm)	Wire Diameter (Metal Wire) (mm)	Wire Diameter (PVC Coated)/ Inner/Outside (mm)	Strands
60X80	φ2.0-2.8	φ2.0/3.0-2.5/3.5	3
80X100	φ2.0-3.2	φ2.0/3.0-2.8/3.8	3
80X120	φ2.0-3.2	φ2.0/3.0-2.8/3.8	3
100X120	φ2.0-3.4	φ2.0/3.0-2.8/3.8	3
100X150	φ2.0-3.4	φ2.0/3.0-2.8/3.8	3
120X150	φ2.0-4.0	φ2.0/3.0-3.0/4.0	3

mesh Opening(mm)	Wire diameter (mm)	gabion Size
60x80	2.0-2.8	1x1x0.3 1x1x0.5 2x1x0.3 2x1x0.5 2x1x1 4x2x1 6x2x0.3 6x2x1 As your request
80x100	2.0-3.2
80x120	2.0-3.2
100x120	2.0-3.4
100x150	2.0-3.4
120x150	2.0x4.0
