Vertical Rubber Compression Injection Moulding Machine

Product Description

Vertical Liquid Silicon Rubber Injection Machine
Rubber Injection Machine
Name :Rubber injection machine,moulding machine
Version: LBZ120A
Device : Excellent quality,stable performance,high efficency
1- TYPE:
Rubber molding machine, hydraulic molding machine, transfer rubber press,
hydraulic injection
2- Usage:
HY Series rubber molding machine is advanced rubber molding machine, its
structure is compact with wide applicability, high efficiency and high yield.
Especially it is suitable for the rubber products of complex shapes, exhausting
difficultly, difficult to molding .
3- Features:
(1).Standard configurations are the entire computer, the electro-hydraulic
proportional control system, high degree of automation, special configuration
for users with computerized frequency conversion power- saving control system.
These series products are high efficiency, power-saving, stable and reliable .
(2).Injection volume and the stroke of mould-open&close can be calculated and
controlled precisely by electronic ruler , mould-open&close is a multi-polar
speed regulation .
(3)Injecting, preplasticating screw and feeding cylinder are nitrogen treated,
with abrasion resistant.
(4)Heating plate uses cast aluminum overall heating, computer PID control,
precision temperature; injecting, preplasticating feeding cylinder use hot oil
heating method, stable.
(5) Infrared light screen protection devices ensure operation safe.6. Equipped
with moving mould, ejection , mechanical tip and core devices .
(6)Applicable line:uto Rubber Parts, Body Rubber Parts,Rubber Boots for
Cables,Hydraulic Seals,Engine Mountings,Anti Vibration Mountings

4- Parameters below:

Type	LBZ-120A	LBZ-220A	LBZ-320A	LBZ-520A
Injection volume(m*m*m)	1000	2000	3000	4000
The clamping force(KN)	1200	2200	3200	5200
Hot plate size(mm)	500*500	550*550	700*600	800*800
Maximum Clamping Stroke(mm)	450	500	600	650
platen space(mm)	500	570	750	900
Min Mould Height(mm)	60	80	160	260
orifice diameter of nozzle(mm)	5	5	6	7
Nozzle radius(mm)	SR19	SR19	SR19	SR19
Oil pump motor power(mm)	7.5	11	15	22
Installed capacity(kw)	26	30	40	60
Machine dimensions( Length*Width*Height)(mm)	3300*1600*2500	3200*2000*4000	3400*2300*4500	3600*2600*4600
Machine weight(ton)	5	6.5	12	20

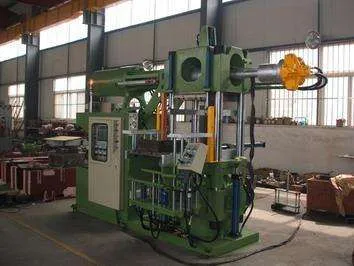

5. Machine Pictures:
