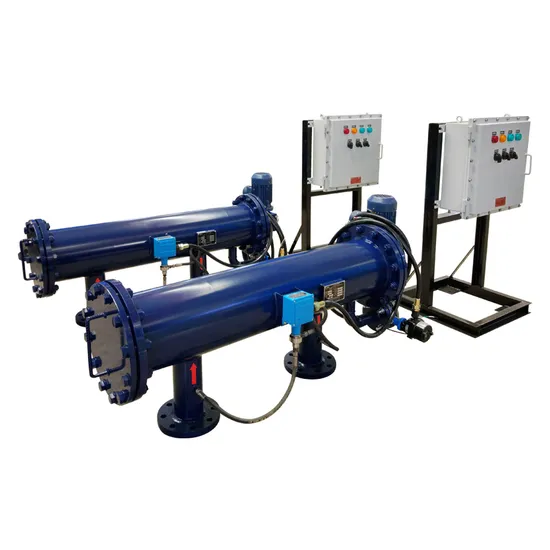

Fine Screen Automatic Self-Cleaning Water Filtration for Oil Industry

Product Description

Fine Screen Automatic Self-Cleaning Water Filtration For Oil Industry
Product introduction

The inside structure of the automatic self-cleaning suction brush filter is made up of the stainless steel strainer and stainless steel wire brush and transmission part. The washing and the drainage are automatically finished by the drive motor and electrical valve. The
operation way is automatic running (manual running is also Ok), It is with the double function of the
pressure difference and regularly automatic drainage. The automation part takes use of the most
advanced and reliable PLC in the world.
When the water flow gets through the filter, the impurity in the water is held by the strainer With the
increase of the impurity accumulated on the surface of the strainer, the pressure difference reaches 0.04Mpa. The switch of the pressure difference will give out a signal while the PLC sends an instruction to start the drive motor and open the drainage valve; the impurity accumulated on the strainer will be brushed off with the rotating brush and discharged from the drainage exit. The whole process of brushing and
draining require no personal operation and without machine halt. At the same time, the equipment is with the function of regular washing and draining and manual washing and draining to make sure that the
water output is safe and reliable in any case.
Filtering process:
Water is filtered through the inlet and is pre-filters through the coarse screen and then filtered through the fine screen. From there it is passed to the outlet and as filtration cake is accumulated on the inner surface of the fine screen pressure differential builds up.
Characteristic
1. Electric device of the automatic washing
2. Filtering precision is from 3500 um to 200 um
3. Simple washing way: by stainless steel brush
4. Anti-corrosion: phosphatization treatment, the outside steel is coated with resin; it also could be with the shell
of anti-corrosion of the seawater or the stainless steel body.
5. No cutoff for the backwashing, low water consumption: no more than 1% of the total quantity.
FAQ:

01. What is the capacity (m3/hour)you required for this equipment?
02. What is the material for this filter?
Carbon steel ?or stainless steel (SS304/SS316)?
03. What is the filtration degree?
100 micron or 200 micron?
04. What is the power supply in your country?
220V/60Hz or other?
Vertical Type:
Y type:
Specifications:

odel	D (mm)	H (mm)	H1 (mm)	Inlet and outlet diameter		Drain parameter (mm)	Max flow (T/h)
				mm	in
YLXS-50	159	500	50	50	2	25	19
YLXS-65	159	500	50	65	2.5	25	28
YLXS-80	219	550	60	80	3	25	50
YLXS-100	219	600	70	100	4	25	80
YLXS-125	219	650	80	125	5	25	125
YLXS-150	273	800	100	150	6	32	180
YLXS-200	325	900	150	200	8	40	320
YLXS-250	377	1050	180	250	10	50	490
YLXS-300	426	1100	200	300	12	65	710
YLXS-350	478	1200	266	350	14	65	970

Features:
Heavy duty filter for high loads of suspended solids and high flow-rates
Durable electrically driven revolving-brush cleaning mechanism
Automatic flushing according to pressure differential and/or according to time
Option for continuous flushing
Low pressure operation, suitable for 2 bar and lower
No interruption of downstream flow during flushing
Applications: Water supply systems, cooling water, waste water treatment
Industries: manufacturing, mining, water and waste water treatment plants, turf and agriculture, etc.
Package:
Shipping way:
Certificate:
Our services: We provide 24 hours online customer service.
Any inquiry about water treatment system, please feel free to contact me for further details!
Contact information:

Website: http://yldwater.en.made-in-china.com
Official website: yldwater.en.made-in-china.com
Guarantee period:1 year
