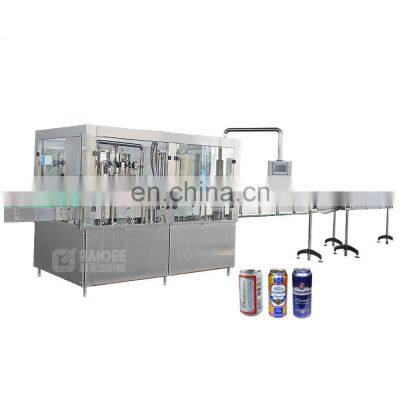

Automatic soda water aluminum tin can filling and sealing machine

Product Description

Product Description
Automatic soda water aluminum tin can filling and sealing machineProduct DescriptionMachine description:It is applicable for equal pressure filler and capper of carbonated drinks in beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination. It adopts the advanced machine, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip long-distance control system according to the customers’ request. It is the preferred equipment for the medium beer and beverage plant. Machine show:DetailsWashing part Pass the turn cage, the bottle mouth is sprayed down into the cleaning liquid,after pass the turn cage again.Filling part A pressure filling, air pressure control.Filling heads can adjust the height and control the level of liquid level. No leakage. Sealing part Air brake control drop cap, photoelectric control with no bottle without drop cap,with no bottle without seaming.Cans sealing heads: 2 screw head, diagonal as a capping head, an upper edge, a lower edge, in order to tight seal cans.Conveyor system Conveying path support on the ground by tripod, driving motor adopt frequency control, it connects with washing filling and capping 3 in 1 machine and keeps pace with it. The filled bottles are conveyed by the conveyor system. Driving system is running by a main motor that adopts gear drive mode. Main technical parameter:ModelGD4T150GD4T250GD4T350The number of sealing head166The number of filling head121832Production capacity30-170cans/min30-250cans/min0-400cans/minCan diameter52.5-99mm52.5-99mm52.5-99mmCan height39-160mm39-160mm39-160mmPower2kw5.5kw5.5kwWeight2500kg3800kg5500kgDimension1850x1240x1900mm3050x1750x1900mm3800x1900x1900mmRelated productBottle drying machineThere is a blower in the equipment, which is dried on both sides through four outlet. It's like a drier. Carbonation drink mixerProcess: Water, syrup, CO2 mixing systemCarbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree Soda water mixing systemProcess: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tank Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc,Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. Automatic sticky / wet glue labeling machineLabeling speed: 60~100B/MinLabeling precision: +1mmBottle size Height : 40mm~~250mm Diameter:20mm~~110mm(customized)Label size:Height :10mm~~150mm Length :15~~300mm(customized)Inner diameter of scroll :Φ76mmOuter diameter of scroll:Φ300(Max) L type PE film shrink packing machinePang Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ coolingSpeed: 8-12packages/minPower (rated/real): 26kw / 16kwMax. packing size: 420*300*350mm(LxWxH)Max. sealing size: 650mm Company Information Our exhibitionWorkshop deatilsOur ServicesCustomer's service:1.Grandee company can provide turn-key project for you, only you have any idea to start beverage factory plant.2. Grandee company have professional design team, our engineer can draw bottle samples and flow chart ofworkshop for you .3. Grandee company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottlematerial, pet or glass,etcAfter service:1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.2. We supply below necessary documents with the machine: a. Machine layout b. Electricity diagram c. Machine certificate d. General manual book/maintenance book3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenanceserviceFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
