Full Notch Creep Tester with 4 independent test positions

Product Description

Product Description

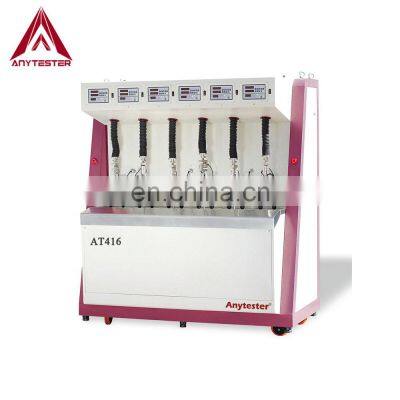

Product DescriptionAT416 Full Notch Creep Tester is used to determine the stress cracking resistance of polyethylene materials in any environment. A test specimen in the form of a square-section bar with coplanar notches in each face at the center, is subjected to a static tensile load in a temperature-controlled environment. The geometry of the specimen is such that plane strain conditions are obtained and brittle failure occurs under appropriate tensile load and temperature conditions. The time for this brittle failure to occur after loading is recorded. StandardISO 16770, 899GB/T 11546Details & FeaturesModelAT416Specimen size100mm×10mm×10mm, 100mm×10mm×4mm, 90mm×6mm×6mmLoad range20N~5000NLoad accuracy±1% of nominal value(with automatic calibration function)Working position6Displacement range0~200mmDisplacement accuracy0.027mmTemperature rangeRT~95℃ or 23℃~95℃ (with refrigeration device)Temperature accuracy±0.5℃Power supplyAC380V, 50HzDimensions1620×850×1750mmSpecification★ 6 independent test positions, automatic loading, easy to operate, accurate and reliable★ Independent elastic supporting mechanism, non-interfering★ Industrial PC control, touch screen operate, can store file, test data and automatically calculate failure time under condition of specified load, and also can draft several curves such as displacement-time, load-time, stress-failure time★ Test environment: thermostatic water bath★ High precision servo motor drive system, excellent performance, long service life, low noiseOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
