LED Portable Spectrophotometer Price

Product Description

Product Description

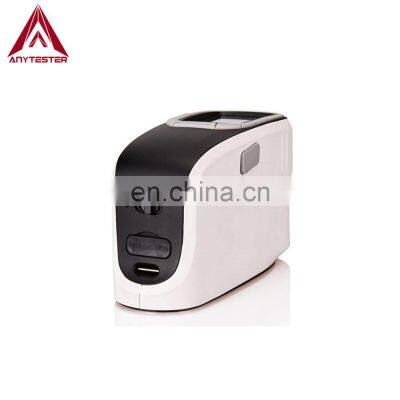

Product DescriptionAT-CC600C/CG Portable spectrophotometer is a small lightweight portable 45/0 geometry color measuring instrument, HY-600CG can also measure 60° gloss. 45/0 geometry is the most consistent with the visual perceptual color value, which can eliminate the specular light on the surface of the texture, and the built-in gloss sensor can accurately measure the gloss of the surface. It is suitable for the color and gloss measurement of automotive interior parts, textiles, coil coatings, plastic products, road traffic representations, packaging and raw materials.SpecificationModelAT-CS600CAT-CS600CGFunctionColorColor, 60° LusterGeometry45/0(45 ring-shaped illumination,0 observe degree)Aperture11mmWavelength400-700nmWavelength interval10nmSensorHigh sensitivity silicon photodiodeIlluminationLEDRepeatabilitylight splitting reflectivity：standard deviation within 0.08%color values;ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Maximum：0.05Inter-instrument agreementΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)LanguageEnglish, ChineseObserver2°/ 10°Light SourceA,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35Color spaceCIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, ReflectanceHunterlab,Munsell MI,CMYK,RGB,HSBIndexWI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz)Metamerism index Milm, Stick color fastness, Color fastnessISO luminance, 8 gloss, A density, T density, M density, E densityColor DifferenceΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555 shade sortColor SpaceCIE-15-2004；ASTM-D523；ASTM-D2244；ASTM D2457Test Angle60°Test Area5x10 mmTest Range0 – 1000 GURepeatability0.2GU(0-100GU)0.2%(100-1000GU)Reproducibility1.0 GU(0-100GU)1.0%(100-1000GU)Illumination Life Time10 years 3 million testLanguageEnglish, ChineseData storage20000 test resultsInterfaceUSBScreen2.8 inch color screenBattery capacityrechargeable, 10000 continuous tests, 7.4V/6000mAhWork temperature range0~45℃, relative humidity 80% or below( at 35°C ),no condensationSize181*73*112mm(L*W*H)Weightabout 800g(does not include battery's weight)Standard accessoriesAC adapter, lithium battery, manual, color management software, driver software, manual electronic version, color Managementtutorial, data cable, black and white correction tube, portable bagGloss Calibration TileOptional accessoriesMeasurement Area LocatorDetails & Features★ Large LCD display with English interface;★ Instrument adopts 45/0 geometry (45 ring-shaped illumination, 0 degree viewing)The innovative ring-shaped illumination system eliminates the direction dependence, regardless of changing the sample position, the tilt sample or the rotating instrument can achieve the high accuracy and the repeatability, will reduce the influence which the grain brings to the lowest. The measurement on the surface of abrasive, textured and structured materials has brought great advantages.★ Compatible with 60 Degree Gloss Measurement (HY-600CG)The instrument is with a high precise gloss measuring sensor that enables simultaneous measurement of gloss and color.★ Comply with International Measurement StandardsThe instrument complies with all the color measurement standards of CIE, ISO, ASTM, DIN and achieves the international leading level.★ Color QC SoftwareOur spectrophotometer comes with free PC color QC software, which is applicable in various industries for management of color value. It is used for store test result, generate test report and print test report after connect with printer.★ Verification CertificationEach instrument will be sent to the authority of the verification department to carry out metrological verification, measuring data traceability to the National Institute of Metrology, to ensure the authority of instrument test data.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting UsSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
