Continuous Multi-Rolls Pre Press for Particleboard/Chipboard/MDF/OSB Production

Product Description

Continuous Multi-Rolls Pre Press for Particleboard/Chipboard/MDF/OSB Production
Product Description
Do you know what is the Continuous pre-press?

Particleboard prepress is an important equipment in particleboard production line, which is used for initial compression of the particleboard layer before hot pressing to improve the efficiency and quality of subsequent hot pressing.
The following are its main features, functions and working principles:
1. Main functions
- Initial compression: compress the loose shavings to a certain thickness, reduce the volume, and facilitate entering the hot press.
- Increase density: Increase the density of the particle layer, reduce the compression ratio during hot pressing, and improve the quality of the plate.
- Exhaust air: Exhaust air during compression to reduce bubbles and defects during hot pressing.
2. Working principle
- The layer of shavings after paving: passes through the conveyor belt to the prepress.
- The prepress applies pressure to the shavings layer by mechanical or hydraulic system for initial compression.
- The compressed shavings layer is transferred to a hot press for final molding.
3. Main features
- High efficiency: Fast compression, improve production efficiency.
- Stability: The pressure is uniform to ensure the same density of the particle layer.
- Automation: Linkage with other equipment in the production line to achieve automatic operation.
- Flexibility: Adjustable pressure to adapt to different thickness and density of particleboard production.
4. Structure composition
- Rack: Support equipment to ensure stability.
- Platen: Direct contact with the shavings layer, apply pressure.
- Hydraulic system: Provides the pressure required for compression.
- Conveying system: The shavings layer is fed into and out of the prepress.
- Control system: Control pressure, speed and other parameters to ensure accurate operation.
5. Advantages
- Improve hot pressing efficiency: Reduce the compression ratio of the hot press, improve the efficiency.
- Improve product quality: uniform compression reduces defects during hot pressing.
- Reduce energy consumption: Reduce the energy consumption of the hot press and save costs.

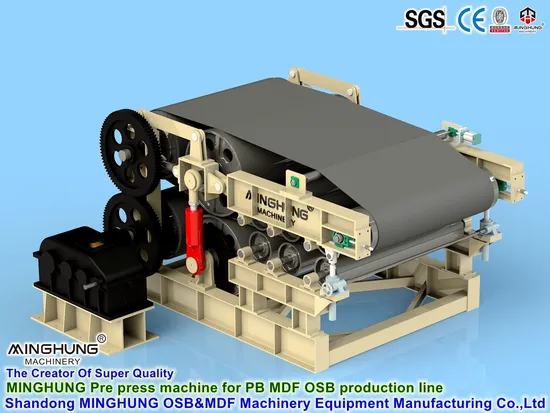

Detailed Photos

Product Parameters

Name	Continuous pre press
Function	Pre press particleboard /mdf /osb
Power	75kw
Belt width	1320mm/1500mm/or customized
Transmission speed	10-30m/min
Working height	1250mm

Note: According to different production capacity and panel requires, continuous press machine specification can be produced.

Our Advantages
With many years production experience, advanced and mature production technology, experienced workers and engineers, professional technicians, our particle board production line has been very famous and high quality. From the beginning, materials and parts choice, to the end machine production finished, each production step by monitor by professional engineers, to make sure it is good and correct.
We are manufacturer and supplier of the full particle board production line + OSB production line + MDF production line, Located in beautiful Linyi city, Shandong Province, China.
The full production line like the wood chipper, wood flaker, screening device, glue blander, drum dryer, mat forming machine, continuous hot press machine, cooling device, sanding machine, cutting machine, our factory can offer to you.
Also if this is new business for you, we can help you make factory layout according to your own conditions.
We are always on the way to become better and better, make our machines better and better, we not pursue low price, we only pursue high quality, which can satisfy our clients requires, and help them produce good quality panel board, help them create much more value and benefits.
FAQ
<1> What is the Production time?
2 months after receive your deposit
<2> What is the Payment terms?
T/T. 30% as deposit, the left payment before loading.
<3> Warranty?
2 years
<4> Installation?
If you want, we can arrange our engineers go to guide install
<5> After sales service?
When you meet problem, contact us at the first time. we will help you solve quickly

Packaging & Shipping
Related PB making machine
Multi-layers Hot press
Mat forming machine line
Rotary drum dryer

Welcome contact us for more information, we will reply you quickly
