Customized Intelligent Pet Packaging Belt Machine with Rotary Dehumidification

Product Description

https://membercenter.made-in-china.com/productmanage.do?xcase=view&prodId=IFDGfVpyaMan&queryGroupId=&queryCatCode=&pageSize=30&queryState=-1&prodUpgradeActivity= Product Description
PET packaging belt production line process flow
Loading →Mixing raw materials → Pre-drying raw materials → Vacuum dehumidification of raw materials →Melting and metering extrusion of raw materials →Cooling and forming of raw materials (with raw materials) →Preheating the oven → Primary stretching →Secondary stretching → Embossing → Oven tempering and shaping →Cooling →Finished product winding

Model	PET-2	PET-3	PET-4	PET-6	PET-8
Raw materials	Bottle flakes/crushed materials
Number of tapes	2	3	4	6	8
Width (mm)	9-32
Width (mm)	0.4-1.2
Maximum line speed(m/min)	>=150	>=150	>=150	>=150	>=150
PLC control system	PLC	PLC	PLC	PLC	PLC
Screw Model	90	100	125	150	180
Reducer model	200	250	280	315	350
Dryer tank	3000L	4000L	5000L	6000L	6000L
Dehumidifier	1000	1000	2000	3000	3500
Metering Pumps	100CC	100CC	100CC	100CC	100CC
Screen Changer	Single cylinder
Production capacity /24 H	5-6T	7-8T	10-12T	12-15T	18-20T

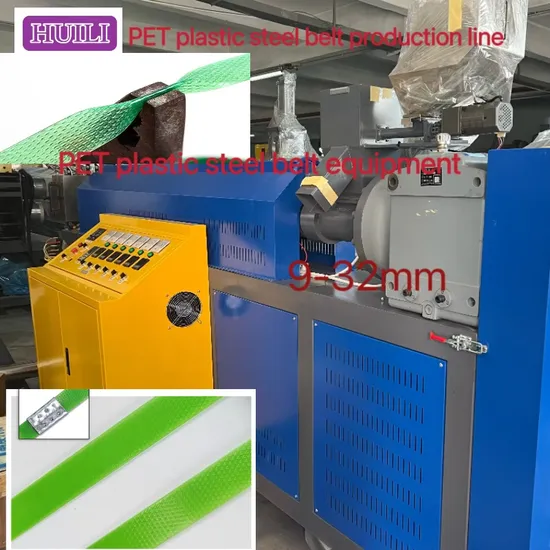

The extruder of the PET plastic steel belt production line adopts a PET special screw with a unique parameter design. The screw has a unique separation and mixing effect, which ensures the uniform plasticization of the raw materials. It has the advantages of large extrusion volume, good plasticization, high hardness, and high wear resistance.
The rotary honeycomb dehumidification and drying system is used to dry the raw materials. The dew point of -50ºC ensures that the moisture content of the raw materials is ≤50PPM, and the original solid phase polycondensation viscosity increasing effect is also achieved.

FAQ
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping tape??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP strapping equipment look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
