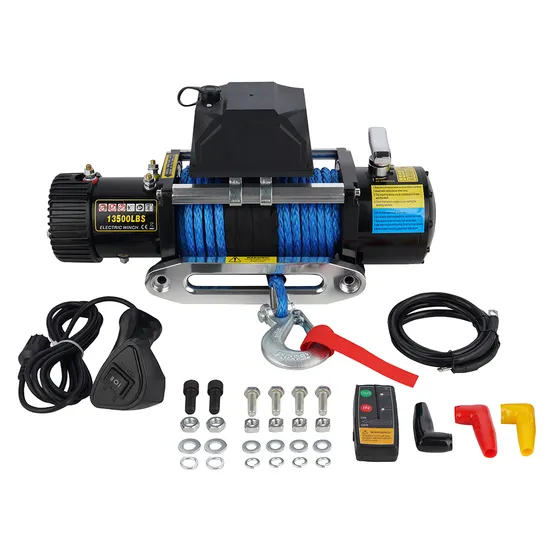

High Quality Synthetic Rope Winch 13500 Lbs 12V DC Motor for Winch Car Cable Winch
Basic Info.
Model NO.
AT-13500
Power Type
Permanent-magnet DC
Electric Winch Model
ATV
Brand
Antai
Applicable Environment
Mountain Road
Transport Package
Carton and Pallet
Specification
1 pc/carton
Origin
Ningbo, China
HS Code
84253190
Production Capacity
10000 Sets Per Month
Product Description
Product Description 12V DC 13500lbs rated line pull 6.5HP pure copper motor Waterproof control box 3m handheld wired remote Pull-and turn clutch handle 3-stage planetary gearing with 265:1 ratio 9.5mmx26 steel wire rope Heavy duty clevis winch hook Stainless steel 4-way roller fairlead 100% full load holding automatic mechanical brake Product Parameters 13500LB WINCH SPECIFICATIONS| Rated Line Pull | 13500LBS (6136kgs) single line |
| Motor | 5.0kw/6.8hp, series wound |
| Control | Remote switch, 9.8ft(3m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 265:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ2.5"(64)mm×(8.8")223.5mm |
| Cable | Φ9.5mmX26m |
| Overall Dimensions | 19.8"x6.3"x8.5"(527mm×160mm×217mm) |
| Mounting Bolt Pattern | 255mm×114mm Φ11 |
| Weight | N.W.38kg G.W.39Kg |
| Packing Size | 610×350×270mm |
PULL, SPEED, AMPERES, VOLTS
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 24.9(7.6) | 80 |
| 1500(680) | 17.2(5.2) | 170 |
| 3000(1814) | 11.8(3.6) | 230 |
| 5500(2495) | 9.2(2.8) | 275 |
| 8000(3629) | 7.2(2.2) | 330 |
| 10500(4763) | 5.7(1.7) | 385 |
| 13000(5897) | 5.2(1.6) | 405 |
LINE PILL AND ROPE CAPACITY IN LAYER
| Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
| 1 | 13000(5897) | 13(5) |
| 2 | 10300(4672) | 23(11) |
| 3 | 8840(4009) | 69(21) |
| 4 | 7410(3361) | 92(28) |
