Ultra-Low Electro-Hydraulic Comprehensive Operating Table

Product Description

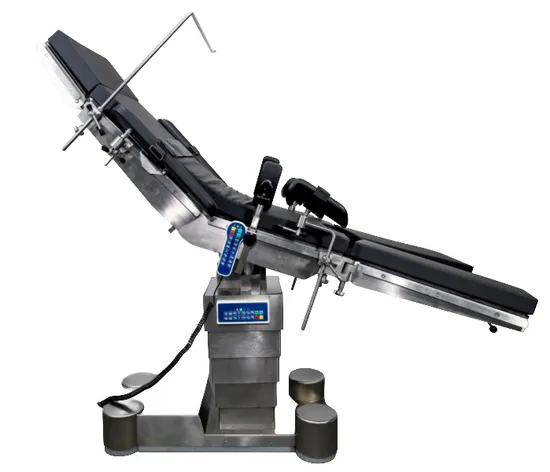

Product Description Ultra-low electro-hydraulic comprehensive operating table
The hydraulic system uses imported parts, works stably and reliably, has a heavy load capacity and low noise, and meets the needs of different surgeries in the hospital's thoracoabdominal surgery, brain surgery, gynecology, urology, ENT, orthopedics and other departments.
PRODUCT CHARACTERISTICS
01.Comprehensive multi-functional operating table, suitable for orthopedics, gynecology, eye, ear, nose, throat, urology and other surgeries;
02.The main body material is SUS304 stainless steel, which is strong and rigid;
03.The table lift, rise, fall, forward tilt, backward tilt, left tilt, right tilt, back lifting, and translation are all controlled electrically, making the operation smooth and convenient;
04.Low position and large lift, table lifting stroke up to 450mm, sufficient space for use with C-arm; suitable for neurosurgery;
05.The tabletop can be moved vertically >300mm, and there are no blind spots when taking pictures;
06.Electric brake locking, convenient for transportation, shifting and cleaning;
07.Equipped with built-in emergency power supply to ensure normal use of the operating bed in case of power outage;
08.Built-in lumbar bridge lift, the lumbar bridge lifts 120mm, meeting the needs of lumbar, spine, gallbladder and kidney surgeries;
09.One-click Trendelenburg and reverse Trendelenburg;
10.One-touch adjustment and automatic level return, which is convenient for first aid treatment;
11.The bed surface uses memory foam mattress, which is easy to clean and disinfect;
12.Two independent systems, the hand controller and the column panel controller, control the movements of the operating table, providing smooth and precise operation, easy operation, safety and reliability;
13.The operating table is equipped with international standard side rails, which can be equipped with various functional accessories to suit the needs of different surgeries.
14.Double-jointed pillow-type head plate
The main technical parameters

Front and rear tilt angle	Front tilt≥25°,Rear tilt≥25°
Left and right tilt angle of the table	left tilt≥20°,Right tilt≥20°
Back plate folding angle	Upward bend≥75°,Downward bend ≥40°
Head plate folding angle	Upward bend≥40°,Downward bend≥80° Rise≥100mm
Leg plate folding angle	Upward bend≥15°,Downward bend≥90°,Extendion≥90°
Table surface Specification	Length≥2100mm Width≤550mm(excluding side guide rails)
Minimum table height	≤550mm
Waist plate rise	≥120mm
Translational stroke	≥300mm
Table lift	≥450mm
