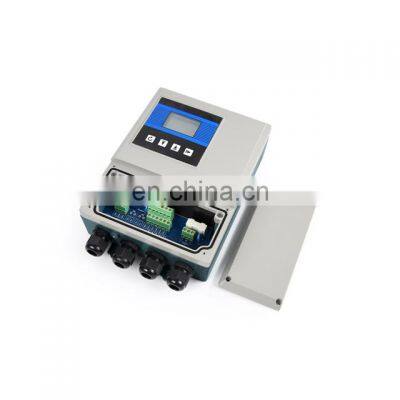

Taijia FT8210H Magnetic Flow Meter Converter Meter Sensor

Product Description

Product Description
Product DescriptionIntegrated Electromagnetic flow converter 4-20maAccording to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different. Suitable to Size of the Sensor (mm）:1，2，3、6、8，10、15、20、25、32、40、50、65、80、100、125、150、200、250、300、350、400、450、500、600、650，700、800、900、1000、1100，1200、1300，1400、1500，1600、1700，1800、2000、2200、2400、2600、2800、3000Detailed Images Before buy electromagnetic flow converter you should know:Electronic flow transmitter is parts of electromagnetic flow meter.ItemElectromagnetic Flow Converter250mA Excitation current35~ 65 ohm125mA Excitation current65 ~ 120 ohmExcitation current125mA,160mA,250mAPower Supply85VAC~265VAC or 110VAC~420VAC or 24VDC or 3.6v lithium batteryPipe size1~3000mmVelocity Range0.01 - 15 m/svelocity resolution0.5 mm/secFrequency25HZ/12.5HZ/6.25HZ/3.125HZCommuncationRS485 (standard),HART (option),MODBUS interfaceLCD DisplayEnglish displayQuick ResponseResponse time of 0.3 secondsAmbient temperature–20~+65℃Relative humidity5%~90%velocity resolution0.5 mm / secOutput Signal (AC and DC power supply type)Current output：4 to 20mA,load;resistance：0～750Ω,Base deviation：0.1%±10µA。 Frequency output: Frequency range is 100～5000Hz；Photoelectric isolation, isolation voltage：> 1000VDC； Pulse equivalent output: user defined pulse width,automatic conversion to square wave at high requency ;Photoelectric isolation, isolation voltage：> 1000VDC； Requirement For Sensor And Excitation (AC and DC power supply type)Excitation current can be set to 125mA、160mA、250mA 250mA excitation current is suitable to the resistance of two coil: 35~ 65Ω; 125mA excitation current is suitable to the resistance of two coil: 65 ~ 120Ωexcitation frequency：25HZ；12.5HZ,6.25HZ,3.125HZPacking & DeliveryRelated ProductsElectromagnetic flow meterOpen channel ultrasonic flow meterVortex flow meterTDS -100F1 Wall mount ultrasonic flow meterTDS-100H hand held ultrasonic flow meterTDS-100M Modular ultrasonic flowmeterAbout usDALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China E-mail:ndt at TEL:86-411-39685079Whatsapp:+8615998577470web:https://tmeasurement.en.china.cn/
