Emulsifying Vacuum Mixer Homogenizing Jacket Heated Equipment

Product Description

P AILUSI MACHINERY

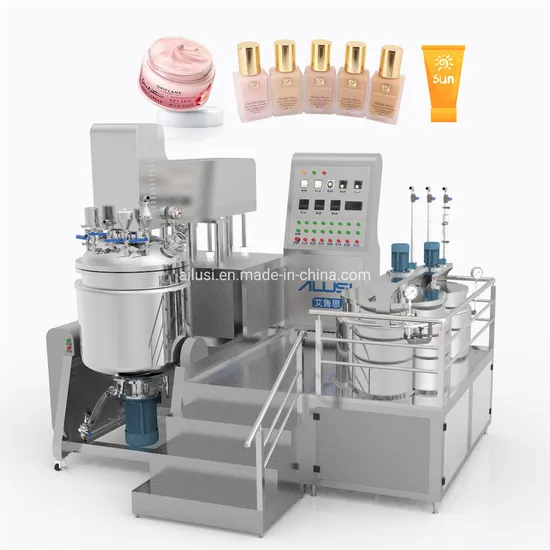

Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard Hydraulic lifting vacuum emulsifier mixer The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries. Standard configurationEmulsifier, water phase tanks, oil phase tank Vacuum pumps and sync solenoid valves
emulsifier and material filter
Hydraulic lifting system and mixing system
Stainless steel platform
Inverter and electrical control box Hydraulic lifting vacuum emulsifying mixer:The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical
factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,
etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries. Details pictures:PRODUCT SPECIFICATIONS

No	Model	AVE-300
1	Working capacity	300L
2	Heating method	Steam/electric
3	Mixing type	Upper frame oar scrape mixer
4	Mixing motor power	4KW
5	Mixing frequency	4KW
6	Mixing Speed	0-65rpm
7	Homogenizer	Bottom homogenizer with frequency inverter
8	Bottom Homogenizer power	7.5KW
9	Speed	0-3600rpm (60Hz)
10	Hydraulic lift system	Dual Hydraulic , power: 1.5KW
11	Vacuum pump	Water cycle vacuum pump, power: 1.5KW
12	Control method	Button control/ HMI
13	Frequency converter	Delta/Panasonic/Mitsubishi
14	Electrical components	Schneider/Delixi
15	Jacket	Double jacket,3 layers
16	Tank materials	Inner layer 5mm/SUS316 Middle layer 5mm/SUS304 Outer layer 3mm/SUS304

Working PrincipleThe materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.
FAQ:1. who are we?We are based in Jaingsu, China, start from 2019,sell to Domestic Market(31.00%),North America(20.00%),Central America(12.00%),Mid East(6.00%),Southeast Asia(5.00%),Northern Europe(5.00%),South Asia(5.00%),Eastern Europe(4.00%),South America(3.00%),Western Europe(3.00%),Africa(2.00%),Oceania(2.00%),Southern Europe(2.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?cosmetic production line,Liquid detergent production line,perfume production line,toothpaste production line,Lipstick production line4. why should you buy from us not from other suppliers?Ailusi Machinery is a professional factory which work on chemical machinery research, manufacturing, selling and offer excellent after-sale service. They mainly apply to cosmetic, food, pharmaceutical industry etc.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: L/C,Western Union,Cash;Language Spoken:English,Chinese,Japanese,French,Russian,Korean
