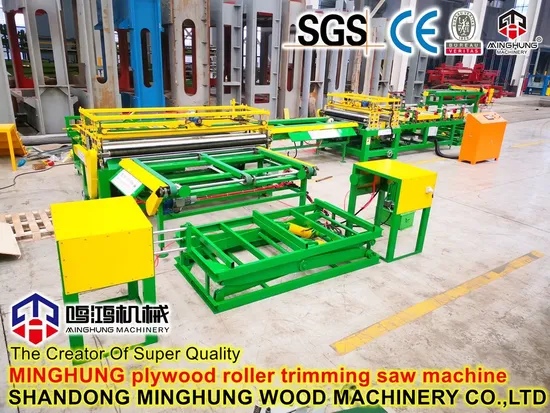

4X8FT CNC Plywood Edge Trimming Saw Plywood Machine

Product Description

4X8FT CNC Plywood Edge Trimming Saw Plywood Machine
PRODUCTION DESCRIPTION
What is edge trimming & cutting saw machine?
This is Automatic edge trimming saw for Particle board, MDF, OSB, and Plywood board production.
Its function mainly for trimming the panel edges, make the panel edge be clean and tidiness, make each panel size be same, it is big helpful for your wooden panel quality.
This type trimming machine is fully automatic, from the beginning to the end, from automatic loading panel, convey, trim, to the end stack, all be automatic, no need workers, therefore, it is high working efficiency and save labor cost.
As your panel board size, we can customize the panel saw for you.
PRODUCT DETAILS

01 Stacking Robotic Arm Automatically Stacking Plywood: It is an automated device used for automatically stacking plywood or other sheet materials that have been processed by the edge banding machine. Flexible Operation: It possesses flexible operation capabilities, allowing it to switch between different stacking modes and adjust according to production needs.

02 Slitting Saw Head

Ensure Neat&Straight Edges: it can precisely cut the edges of sheet materials to ensure consistent width and straightness.
Different Cutting Effects: The shape and size of the cutting tool can be adjusted as needed to achieve different cutting effects.

03 Infrared Automatic Positioning&Guiding Faster&More Accurate Positioning: Using the infrared positioning guide automatic operation system allows for faster and more accurate positioning and guiding of workpieces. Automatically Adjust the Operation: By analyzing the received signals, the system can determine the position and direction of the workpiece and automatically adjust the operation of the edge banding machine to ensure proper processing.

04 Aluminum Rollers Durable&Corrosion-resistant Metal Materials: It can withstand high levels of stress and continuous operation without easily wearing out. Stability&Long-term Performance: whether for automatic feeding or conveying, rollers are commonly made of high-quality metal materials to ensure stability and long-term performance during operation.

PARAMETERS

Product name	plywood cutting saw
size	4*8feet /3*6feet /customize
working speed	40-70m/min
capacity	7-9pcs/min
working style	infrared ray guide
feeding way	automatic
with one set lift table

ADVANTAGES
<1> Be controlled by micro-computer, easy operate.
<2> Be positioning by infrared ray, accurate cutting
<3> Be controlled by PLC, automatic cutting.
<4> Automatic cutting plywood edges and sorting plywood.


DELIVERY

<1> Before Order ship, our engineer will test machine make sure it is in good condition.
<2> When loading, we will share pictures with you.
<3> After ship leaving, we will offer container and ship information for your reference.
<4> Offer all documents for you do custom clearance.

WHO WE ARE
MINGHUNG MACHINE,was founded in 1998, located in Linyi city, Shandong Province China, commit to provide the full sets of Plywood production line. Minghung Wood machinery, Minghung trade, Jianzhong trade, Hungyou Intelligent Equipment Industry Research, belong to us.
With more than 20 years production experience, and adhere to continuous innovation and improvement, with specialized R&D center, obtained a number of research and development patents, with experienced technians and engineers, and professional sales team and after-sales team, We have beome one China's high-end plywood machinery manufacturing enterprise.
We can provide Veneer production line, Veneer drying line, Core veneer composing line, Plywood assembly line, Veneer patching machine, Glue machine, Cold press machine, Hot press machine, Film faced hot press machine, Plywood edge trimming machine, Sanding machine, Plywood panel turnover machine, Lift table and so on for you.
Our principle is "Make customers satisfied and Create greater value for customers".



Welcome contact us for more information about plywood manufacturing machine.
