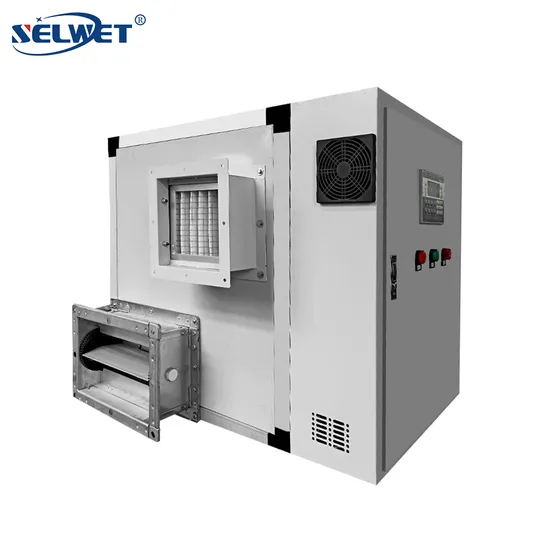

Industrial Use Rotary Desiccant Rotor Air Moisture Adsorption Drying Dehumidifier Machine

Product Description

Product Description
COMPONENTS:
- Dehumidifying section of runner (including drying runner, regeneration fan, regeneration heater, regeneration filter and regeneration valve)
- Treatment fan section
- Front surface cooling section
- Rear surface cold section
- Primary effect filter section of treated air
- Medium and high efficiency filter section of treated air (optional)
- Air mixing section
- Electrical control panel
ROTARY DEHUMIDIFIER PRODUCTS INCLUDE:
Standard rotary dehumidifiers and combined rotary pulse humidifiers of various specifications, such as standard type, energy-saving type, low regeneration temperature type, and low demand point type, can meet the requirements of various operating environments and air parameters to achieve simultaneous control of temperature and humidity; At the same time, various non-standard dehumidification equipment can be customized according to user requirements.
Product Parameters
TECHNICAL DATA

Model	SZCB-300W	SZCB-500W	SZCB-600W	SZCB-1000W	SZCB-1500W	SZCB-2000W	SZCB-3000W	SZCB-4000W	SZCB-6000W
Test Condition	26ºC,RH60%
Dehumidification (kg/h)	0.8	2.2	2.5	5.5-6.3	11.5	17	24.4	34	52.2
Rated Process Air flow (m³/h)	300	500	600	1000	1420	2100	3000	4200	6400
Regenerated Air Flow (m³/h)	100	200	200	330	470	690	990	1390	2110
Max. Power (w)	1.9	4.6	5	10.09	16.44	25.34	33.85	52.7	78.8
Regeneration heating power (w)	1.6	4.2	4.8	9	15	22.5	30	46	71
Voltage/Cycle (V)	220-240			380
Regenerative fan power (kw)	0.14	0.18	0.18	0.25	0.25	0.55	0.75	1.1	2.2
Dehumidified fan power (kw)	0.35	0.55	0.55	0.75	1.1	2.2	3	5.5	5.5
Dimension (mm)	365*335*760	450*500*850	450*500*850	1255*660*810	1620*920*1260	1620*920*1260	1920*1020*1360	2020*1120*1360	2220*1320*1660
Weight (kg)	35	50	55	120	150	200	230	260	300

MODEL	SZCB-D200M	SZCB-D300M	SZCB-D200M	SZCB-400MF	SZCB-D500MF
Test Condition	26ºC,RH60%	26ºC,RH60%	26ºC,RH60%	26ºC,RH60%	26ºC,RH60%
Dehumidification (kg/h)	0.6	0.8	0.6	1.2	2.2
Rated Process Air flow (m³/h)	200	300	200	400	500
Regenerated Air Flow	60	100	60	120	200
Max. Power Rating (w)	1800	1900	1800	4500	4600
Humidity controlled (RH%)					10-60%
Regeneration heating power (w)	1500	1600	1500	1600	4200
Voltage/Cycle (V)	220	220-240	220	220	220-240
Treatment air outlet diameter (mm)	95	95	95	95	145
Treatment air inlet diameter (mm)	95	95	95	95	145
Regenerative air outlet diameter (mm)	70	70	70	70	70
Regenerative air inlet diameter (mm)	95	95	95	95	95
Treatment air filter dimension (mm)	125*195*10	125*195*10	125*195*10	125*195*10	125*195*10
Regenerative air filter dimension (mm)	125*195*10	125*195*10	125*195*10	125*195*10	175*195*10
Dimension (mm)	365*335*760	365*335*760	365*335*760	365*335*760
Weight (kg)	35	35	35	35	50

Our Advantages
Adsorption or rotary dehumidifier is recognized as one of the preferred technologies to replace CFCs compression refrigeration dehumidifier in the 21st century due to its energy saving and environmental protection advantages. This function can quickly, simply and effectively reduce the air humidity, effectively solve the dehumidification fields that can not be carved by other freezing methods, such as normal humidity and low humidity, low temperature and low humidity, especially the air dew point can reach below - 70 ºC after combined use; Low grade heat energy such as industrial waste heat, waste heat, solar energy and natural gas can be used as renewable energy, without environmental pollution and low energy consumption.
Application
It is widely used in food, medicine, electronics, electrical appliances, chemical industry, national defense, printing and other industries with explicit requirements. In high temperature and high density areas, the adsorption wheel house remover will give play to its unique advantages and can bring huge economic benefits to enterprises.
Company Profile
Hangzhou Shier Electrical Equipment Co.,LTD (Selwet Electrical), located in Hangzhou Dajiangdong Development Zone, introduces the advanced refrigeration technologies from Germany and is establishing itself as a high-tech enterprise focusing on the research & development, production, sale, and services of ventilating dehumidifiers and relevant products covering dehumidification projects and indoor air purification projects.
Since its establishment, Selwet Electrical has been seeking breakthroughs and committed to the research and development of temperature & humidity control related technologies. Aspiring to be the leader of the field, it can offer over one hundred types of products, including civilian dehumidifiers, industrial dehumidifiers, Constant temperature and humidity dehumidifiers, precision air conditioners, cellar and rotary air conditioner purifying units and ventilation systems. They are widely applied in the fields of biology, electronics, food, chemical industry, defense industry, tobacco and laboratories in institutions of higher education for the purpose of providing customers with favorable indoor and working environment.
We keep on improving quality and customer satisfaction. Besides a sale network across China, we have entered the markets of North America, South America, Europe, and Southeast Asia, and won favor and forged a friendly relationship with considerable customers.
Strength is built by effort, altitude is affected by attitude. We maintain the attitude of "faithfulness, responsibleness, unitedness, and aggressiveness", and fulfill quality requirements in every aspect. We embrace the philosophy of "keeping on improving ourselves** and work diligently to deliver high-quality temperature and humidity control products.
In the future, we will continue to create more quality products and press ahead to pursue our dream of establishing ourselves as an influential world leader in the field of temperature and humidity control.
Certifications
By continuously improving its management, the Company has passed such enterprise or product certification as ISO9001, ISO14001, the EU's CE marking and China's 3C. Our dehumidifiers are trustworthy: Selwet is one of the sponsors of the 2022 Beijing Winter Games.
FAQ
1. Can you customize the product?
Yes, We can customize products according to customers' requirements.
2.What kind of payment terms you do?
Paypal, West Union, T/T, L/C
3. What kind of shipment available?
By sea, by air, by express or as your requirement
4. How long is the delivery time?
15 working days
Attention
1.Put it on rugged and flat ground to avoid machine shake
2.Please sure the voltage of the power supply is consistent with the machine
3.Do not use the same socket together with other appliances
4.The machine should not be placed next to the heat source, to avoid increasing power or failure
5.Do not use the machine when the environmental temperature is over 38 degrees C
6.Do not exceed 45 degrees when moving or handling the machine
