Premium China Gyfta Fiber Cable with 288 Core Capacity

Product Description

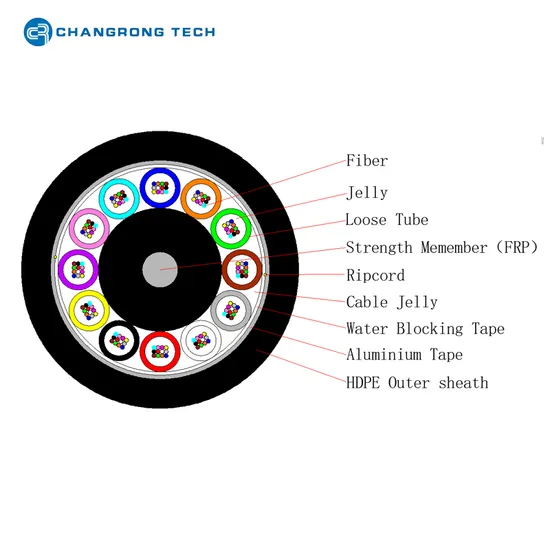

Cross Section
Detailed Photos

Product Description
The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. An Aluminum tape(APL) is applied around the cable core, which is filled with the water-blocking compound. Then the cable core is covered with a PE inner jacket. After the corrugated steel tape(CST) is longitudinally armored over the inner jacket, the cable is completed with a PE outer jacket.
• Good mechanical and thermal performance
• Steel wire as the central strength member
• Hydrolysis resistant loose tube
• Tube filling compound ensures critical protection of fiber
• Stranded compact structure eliminating contraction of tubes
• Rugged, durable PE sheath protects against UV radiation, fungus etc.
• Crush resistance and flexibility
• Water-blocking measures :
- Loose tube gel-filled
- 100% cable filling compound
- APL moisture barrier
- Corrugated steel tape (CST) enhancing moisture-proof

Application
Direct-burial / Duct / Non Self-supporting Aerial Installation

Product Parameters

Counts	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units(Tubes or Fillers)	6	6	6	6	8	10	12	18	24
Cable Diameter(mm)	13.9	13.9	14.7	14.7	16.0	17.4	18.9	19.3	21.3
Weight(Kg/km)	178	178	199	199	234	274	320	327	398
Fiber Type	G652D G655 G657 50/125 62.5/125
Tensile Strength(N)	Long/Short Term:1000/3000
Crush Resistance(N/100mm)	Long/Short Term:1000/3000
Bending Radius(mm)	Static/Dynamic:12.5D/25D
Temperature(ºC)	Storage /Operation:-40ºC~70ºC

Our Advantages
Packaging & Shipping
FAQ

1.Are you the real manufacturer?
Yes. We are the real manufacturer in Chuzhou Anhui Porvince, China.

2.What is your fiber brand ?
We have our own fiber production lines and the preforms are from YOFC, FIBERHOME.

3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5.Which kind of certification you have ?
ISO9001, ISO14001

6.What is your delivery time?
Usually within 7-10 working days

7.What about your annual production capacity?
Outdoor Fiber Optic Cable : annual output is 35000 KM;
FTTH/FTTX/FTTA Cable: annual output is 1200000 KM per year;


8.What is your payment way?
T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
