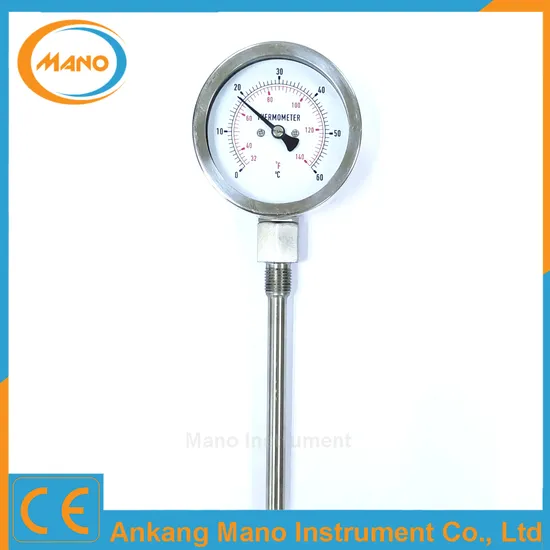

All Stainless Steel Thermometer Bi-Metal Temperature Thermometer for Industry

Product Description

Product Description Applications
1.Process instrumentation in machinery, chemical textile, medicine, foodstuffs, vessel for measuring and controlling the temperature.
2.Widely used in the petrochemical and chemical industries, power generation, water and wastewater industries, oil and gas industries.
3. Temperature measurement and testing for aggressive environments.
Features
1. It has high measurement accuracy and long-term stability.
2. Reset, zero adjustment for optional.
3. All stainless-steel industrial construction.
4. Cost effective and easy installation.
5. Scale ranges from -60…+600°C.
Description

Product name	Bi-metal thermometer
Measuring range	-60~600°C (Between this range, as customers requirements.)
Diameter	25mm 40mm 50mm 63mm 80mm 100mm 150mm (we also can make other size, when customers have requirements.)
Stem length	46mm 50mm 64mm 100mm 150mm 200mm 250mm 300mm 350mm or longer (we also can make other length, when customers have requirements)
Stem diameter(mm)	Φ6 Φ8 Φ10
Case Material	Stainless steel or Chrome steel
Ring	Stainless steel or Chrome steel
Stem Material	Brass or Stainless steel
Thermowell	Brass or Stainless steel or no thermowell
Thermowell thread	G1/2 (other thread is also allowed)
Stem thread	G1/2 G1/4 (other thread or no thread is also allowed)
Mounting type	Bottom/ Back/ Universal/ with needle/ with spring for pipe mounting
Lens	Glass
Dial	Aluminium-white
Pointer	Aluminium-black
Zero adjustment	With adjustment/ no adjustment
Accuracy	1.5% 2.5%

Detailed Photos
Company Profile
FAQ Q:Do you have MOQ?
A:We don't have MOQ
Q:Can you supply OEM, ODM services?
A:Yes, we can provide OEM for our products, and for some of the products, we provide ODM.
Q:Can we check and confirm the dial plate before production?
A:Yes, for customized products, we can send you the dial plate pic for your checking and confirming before production.
Q:What is your packing for export products?
A:(1)For pressure gauge, thermometer, we usually use neutral box with neutral carton.
(2)For digital pressure gauge, we usually use plastic seal and box, with neutral carton.
(3)For pressure calibrator, comparator pump, we usually use box with carton or wooden box.
Q:The quality of your products.
A:Our products are strictly following international measurement and calibration standards. And all products are with 100% inspected by skilled workers.
Q:What is our payment terms?
A:For sample or trial orders, we can use West Union and PayPal, TT etc. For large orders, we accept TT, LC or other payment terms after negotiation.
Q:What is your shipping way?
A:Sea transport, train transport, air transport or express like DHL, UPS, TNT, FEDEX etc. are all available for us. We will choose the best way according products and your requirements.
Q:Can you provide us sample? Is it for free?
A:Yes, we are very willing to provide you samples. For products lower than 10USD, we can send the free sample for you.
Q:How long is your product warranty?
A:You can enjoy free warranty service for products withinone year from the date of sale. For cases where the free warranty service is not met, our company provides paid technical service and repair service for the life of the product.
Options
"HOW TO ORDER" SEQUENCE
Model /Nominal size / Scale range / Thread size / Process connection / Options
