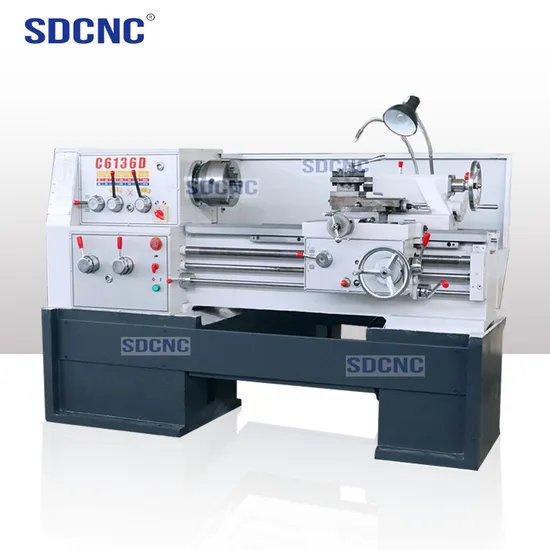

Chinese Horizontal Semi Automatic Lathe C6136D Universal Lathe Machine for Metal

Product Description

Product Description
Conventional Floor Type Lathe Machine For Turning Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,Shaft,etc 1. Outstanding Features More than 50 years' experience in machinery industry since 1960s. Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional) Base adopts triangular guide design Reasonable structure High performance with low cost Exported to over 40 countries Maximize Customer's Profitability under the minimum invest cost compared with other competitors. Application: The base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is
very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance
design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange
tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry,
heavy machinery, mining and railways equipments and aviation industry. Product Parameters

SPECIFICATIONS	Units	C6136
Max Swing diameter over bed	mm	360
Max Swing diameter over cross slide	mm	190
Max Swing diameter over gap	mm	-
Distance between centers	mm	750/1000/1500/2000/3000
Spindle bore diameter	mm	52( Opt.80)
Spindle bore taper	-	MT6 (Opt. Metric 1:20)
Spindle speed range	rpm	40-1400
Spindle speed steps	-	9
Cross slide travel	mm	180
Top tool post travel	mm	95
Tool size	mm	20*20
Longitudinal feeds range	mm/r	0.0832-4.6569
Cross feeds range	mm/r	0.048-2.688
Kinds of metric threads	kinds	19
Range of metric threads	mm	0.25-14
Kinds of inch threads	kinds	28
Range of inch threads	T.P.I.	2-40
Kinds of threads module	kinds	17
Range of threads module	M.P.	0.25-3.5
Tailstock quill diameter	mm	65
Tailstock quill taper	-	MT4
Tailstock quill travel	mm	130
Main motor power	kw	4
Coolant motor power	kw	0.09
Weight for 750	kg	1200
Weight for 1000	kg	1300
Weight for 1500	kg	1500
Weight for 2000	kg	1700
Weight for 3000	kg	1900
Dimension for 750	mm	2200*1140*1500
Dimension for 1000	mm	2400*1140*1500
Dimension for 1500	mm	2900*1140*1500
Dimension for 2000	mm	3400*1140*1500
Dimension for 3000	mm	4400*1140*1500
