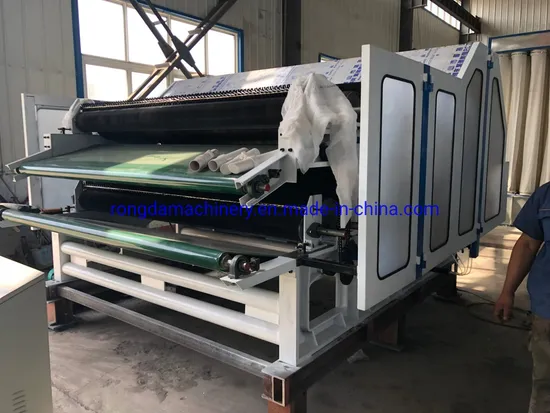

Nonwoven Carding Machine Textile Waste Clothes Recycling Machinery

Product Description

Carding fiber / fabric / cotton machinery for Non Glue Felt Production Line / Non woven Wadding line
Usage and Features of Carding machine
Carding machine is mainly used in Non-woven production line and cannot work alone.They can convent the fleeciness textile fiber into Acupuncture cotton,high-density and high-spring such as Thermal insulation blanket,Greenhouses quilt raw materials,Shoes materials,Mattresses,Sofa cushion,Car mats,Chemical products and Non-woven fabrics for engineering etc,through Carding process,Spreading process,Acupuncture process,Strengthening process.
Suitable for: chemical fiber, such as PET, PP specification: 1.5 ~ 6 d length of 31 ~ 51 mm polyester staple fiber and ES low melting point fiber, glass fiber, aramid fiber, etc
Application:The machine is suitable to card the chemical fiber and blended fiber after opening to be evenly distributed fiber network and used for the next processThe machine adopts single-cylinder combing, double-doffer double-random (clutter)roller delivery, double-roller stripping cotton, with strong carding ability and high production. All cylinders of the machine are modulated and qualitatively processed and then precision machined. Radial runout is less than or equal to 0.03mm. The feed roller is paired with the upper and the lower two groups, frequency control, independent transmission, and equipped with metal detection device, with the function of self-stop alarm reversing.

NO.	ITEM	DESCRIPTION
1	Model	GMCD2-2550×Ф1230
2	Raw materials work on	Processing of raw materials from feeding machine, the output fiber layer
3	Working width	2550 mm
4	Production capacity	2550 Carding machine,300kg/h
5	Fiber raw materials requirements	3~15D×38~65mm
6	The speed of the output fiber layer	≤40m/min
7	Total power	24 KW
8	Main body	High quality castings (HT200), are subject to high temperature stress after processing and precision machining with a mix of profile stays
9	Feeding roller	With a pressure roller feeding uniformity. Feeding roller: 4sets , φ65mm
10	Metal detectors	Equipped with metal detectors, feedback and control power and warning
11	Diameter of Cylinder &doffer &mixed and disorderly roller	φ1230 mm; double doffer diameterφ492 mm, mixed and disorderly roller diameter: φ295 mm
12	No of groups	There are 5 carding working groups, so can get a very good carding effect
13	Dust collection points	There are 4 dust places
14	Working shield	Working shield with transparent organic glass, a mechanical rotation can be observed during it running
15	Power	Main motor 15kw, reducer 1.5kw *6

Related Product line:
Machine list,

NO.	Machine	Model	UNIT	Q'TY	REMARKS
1	Electric bale opener	Follow up production requirements to match production width	SET	2-3	Electronic weighing through photoelectric sensor to achieve precise control
2	Pre-opener	Follow up production requirements to match production width	SET	1	Pre opener--nail plate cylinder
3	Main-opener	Follow up production requirements to match production width	SET	1	With a simple Condenser
4	Feeding machine (Hopper machine)	Follow up production requirements to match production width	SET	1	With the feeding box
5	Carding machine	Follow up production requirements to match production width	SET	1	single-cylinder, double doffer/Double-cylinder, double doffer
6	Cross Lapper	Follow up production requirements to match production width	SET	1	Fold the fiber layer that from carding machine to reach the thickness of desired and send to needle punching machine
7	Drying oven / needle punching machine	Follow up production requirements to match production width	SET	1	/
8	Cutting Machine	Follow up production requirements to match production width	SET	1	1:Machine body is made of high quality carbon steel plate and profiles 2: The three electric fly knife and four cylinder cut knife can be used interchangeably

Our Company:
Gaomi Rongda Machinery Co.,Ltd. Was established in 1999,Located in Gaomi,Shandong province,which is near to Qingdao sea port,super geographic location for transportation.
We company has been engaged in the field of textile waste recycling and processing of mechanical processing and manufacturing.Mainly produce Textile waste recycling machinery line,which include opening machine and cleaning machine,Textile waste cutting machine,Baling machine,Nov woven Fabric Making Machine,Needle punching machine,Quilting machine and Spare parts.
Our Service:
1.We have After-sale department,every client can get a timely feedback when they have any trouble about our machine.
2.We have installation team,if you need,we will provide installation service.
3.Our equipment warranty period is 1 years,within this time,we will provide free maintenance.
4.If you have any other question or demand,please feel free to contact our businessmen,they will reply you within 8 hours.
