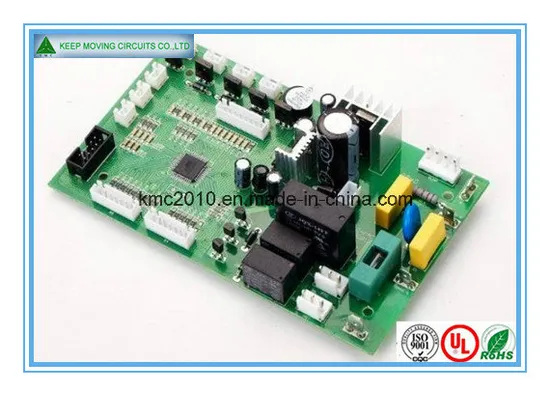

China Shenzhen OEM/ODM Printed Circuit Board PCB PCBA Manufacturer
| US$10.50-12.50 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PCB Assembly
Layers
Multilayer
Base Material
FR-4
Certification
RoHS, CCC, ISO
Customized
Customized
Condition
Used
Material Type
Fr-4/Htg150-180 Fr-4/Cem-1/Cem-3/Aluminum
Board Thickness
0.2mm--4.0mm
Minimum Trace Width
3mil
Min Space Width
4mil
Min Drilling Dia
0.2mm
Pth Copper Thickness
0.4-2mil(10-50um)
Tolerance of Eteching
± 1mil(± 25um)
Surface Finish/Plating
HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gol
Tg Value
130, 135, 140, 150, 170, 180
Transport Package
by Vacuum Packing in Cartons
Specification
FR-4 200mmx75mm PCB Assembly
Trademark
PCBA
Origin
Shenzhen, Guangdong
HS Code
85340090
Production Capacity
50000pieces/Year
Product Description
Product DescriptionQuick lead time PCBA wih high quality
RoHS complaint PCB
Lead free technology
UL approved
Welcome to Keep Moving Circuits Co., Ltd 1. Who we are
| PCB Manufacturer | Flexibility | Quality |
| Keep Moving Circuits, firstly established as a PCB manufacturer, has its own PCB factory with advanced manufacturing facilities, capable in fabricating up to 30 layers PCB boards. The factory is ISO9001 certified, with its PCB products UL approved and RoHS compliant. Your PCB cost and lead time can be reduced to buy PCBs from us. | Keep Moving Circuits is highly customer oriented catering for customer's specific requirements. There are various kinds of available services, you can choose either full turn-key solutions or any single specific service. We can handle any size project from minimum quantity one piece to mass production. And we provide quick turn PCB and PCBA manufacturing service. | Keep Moving Circuits fully understands the importance of quality for your projects. The quality control system is integrated in each step from preliminary PCB manufacturing to final PCBA packing, and a well-organized inspection and test procedure is performed to ensure the superior quality. All the products are 100% inspected for each shipment. |
2. Support
Keep Moving Circuits aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry.
| Layers | 1-30 layers | Min Board Thickness(2-layer) | 0.2mm |
| Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm |
| Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm |
| Min Trace | 0.1mm | Min Annular Ring | 0.1mm |
| Min Space | 0.1mm | Min Hole Location Tolerance | ±0.075mm |
| Min Hole Size | 0.2mm | Min Hole Size Tolerance | ±0.05mm |
| Board Warp | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm |
| Solder Mask | Green, Yellow, Red, Black, Blue, White | ||
| Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP | ||
| Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic | ||
| Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD | ||
| CAM software | Genesis, CAM350 | ||
3. PCB + Assembly
More and more of our existing PCB customers are now asking us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' requirements, Sunthone develops from a PCB manufacturer to a one-stop PCBA service provider, including PCB assembly, components sourcing, stencils, cable assembly and final product assembly and testing.
| Available Services PCB Manufacturing PCB Assembly Components Sourcing SMT Stencils Cable Assembly PCBA Testing Final Product Assembly | Assembly Technologces SMT THT Reflow Soldering Wave Soldering Hand Soldering Repair/Rework Mixed Assembly Technologies |
