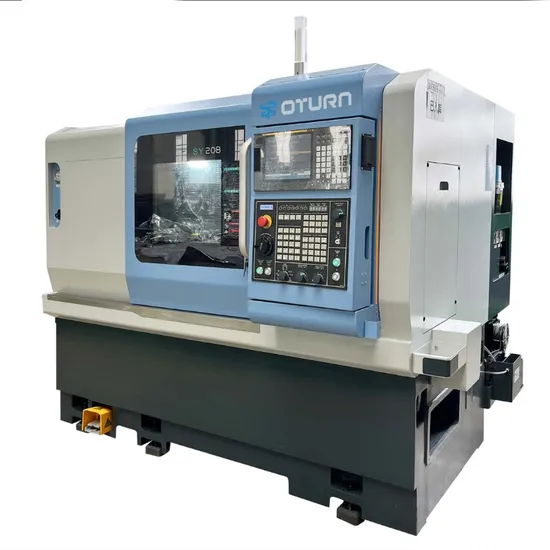

Ht300 Cast Iron Slant Bed CNC Lathe Turning Machine Sy208

Product Description

Product Description
1.Adopt direct drive synchronous electric spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. 1.Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, 2.adopt a rear-mounted rotor, which makes installation and maintenance faster, 3.the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product.
2. World-class high-rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
3. The machine tool is equipped with THK linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to prevent thermal changes. The bit quantity will be reduced to the minimum, greatly improving the processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
5. Programmable hydraulic tailstock and high-rigidity structure of the integral tailstock can eliminate vibration and improve stability. It can be controlled by programmable or manual buttons, and the sleeve telescopicity is realized by hydraulic cylinder, which is convenient, fast and reliable.
6. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various types of equipment can be designed and installed according to the special requirements of the user. Special fixture. Product Parameters

	Name	Unit	SY208
Travel	The largest diameter rotating bed	mm	Φ600
	Maximum processing diameter	mm	Φ500
	Max.Swing Over Cross Slide	mm	Φ300
	Maximum processing length	mm	550
	Distance Between Centers	mm	600
Spindle Hydraulic Cylinder Chuck	Spindle nose	type	A2-6
	Maximum speed of spindle	rpm	4300
	Hydraulic Cylinder/Chuck	lnch	8″
	Spindle hole	mm	Φ65
	Bar diameter	mm	Φ52
	Spindle motor power	kw	22KW
X/Z axis feed	X/Z axis travel	mm	280/600
	X/Z axis rail specification	spes	35Roller
	X/Z axis motor power	kw	2.9KW
	Positioning accuracy	mm	±0.005
	Repeat positioning accuracy	mm	±0.003
	X/Z axis moving fast	m/min	20/20
Servo Turret	Opposite side of cutter head/Tool position	mm/pcs	420/12T
	The tool specifications	mm	25X25
	Circular cutter holder specification	mm	Ф40
	The adjacent tool change time	sec	0.15
Tail stock	Programmable hydraulic tail seat	/	programmable
	The biggest stroke of the tail	mm	440
	Morse Slide way	type	Mohs 5#
	Sleeve diameter	mm	Ф100
	Sleeve travel	mm	100
Mechanical Size	Machine size	mm	2620x2200x1920
	Machine Weight	kg	5000kg
Other	Cutting fluid tank volume	L	150L
	Cutting water pump	kw	0.75kw
	Volume of hydraulic unit box	L	40L
	Hydraulic oil pump motor power	kw	1.5kw
	Volume of lubricating oil tank	L	2L
	Auto lube pump motor power	W	50W
	Cooling water pump power	W	750W
