Single Color Tampografia Printing Machine with Open System
| US$1,689.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LC-PM1-100
Usage
Flexo Printing, Gravure Printing
Plate
Relief Printing
Type
Resin Plate Making Machine
Pad Printing Size
85*95mm
Pad Printing Plate Size
100*100mm
Power of Tampografia
220V/50Hz 110V/60Hz
Printing Color
1
Max Pad Printing Speed
1500PCS/H
Machine Weight
110kg
Transport Package
Plywood Case/as Required
Specification
ISO-9001-2000
Trademark
LC
Origin
China
HS Code
8443198000
Production Capacity
60sets\Month
Packaging & Delivery
Package Size
83.00cm * 53.00cm * 140.00cm
Package Gross Weight
110.000kg
Product Description

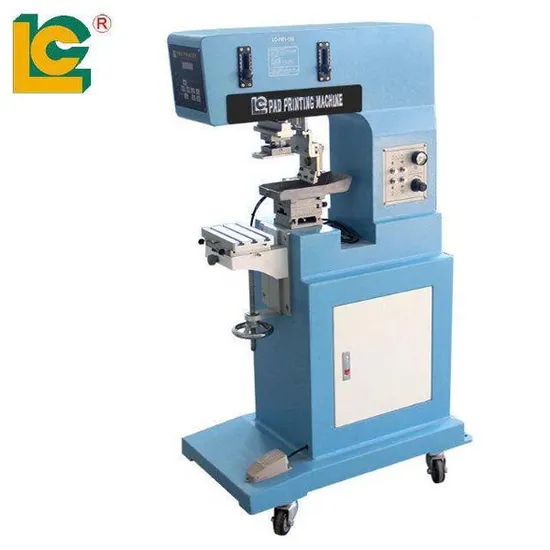

LC-PM1-100 Single color pad printer| Description LC-PM1-100 Single color pad printer it is standard model in pad printing line. Widely use for Special shape parts. Such as keyboard, mouse, toies, pens, Cosmetics package box, hardware Parts. Feature 1. Ontrolled by microprocessor, easy operation, running stably and accurately. 2.4-digit auto counter built-in. 3. Cast aluminum machine frame, low weight and high intensity, turnable machine head. 4. Separate adjustment of the pad up/down stroke speed. 5. Ink scraper is auto balance keeping in printing. 6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying. 7. Ink cup is turnable and adjustable in vertical and horizontal direction. 8. With super long slide stroke to print large size workpiece. 9. Speed of every single pneumatic organ is adjustable |
| 1. Model No: | LC-PM1-100 |
| 2. Operation: | Pneumatic |
| 3. Printing Colors: | 1 |
| 4. Plate area: | 100*100mm |
| 5. Printing area; | 85*85mm |
| 6. Jigs: | 1 |
| 7. Max printing speed: | 1500PCS/H |
| 8. Wattage: 220V/ 50Hz: | 220V/50Hz |
| 9. Air pressure: | 0.4-0.6Mpa |
| 10. Machine size(LxWxH): | 830x530x1400mm |
| 11. Machine weight: | 110kg |
