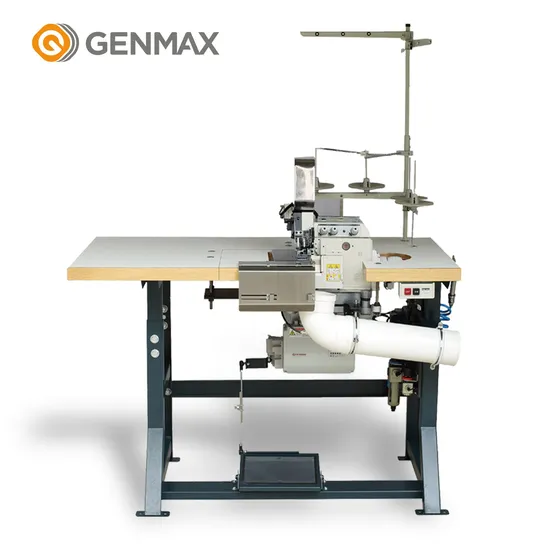

Mattress Fabric Double-Needles Flanging Machine Serging Stitch Machine Kb4a
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
KB4A
Condition
New
Certification
CE
Application Place
Factory
Applicable Thickness
Thick Material
Drive
Hand Type
Thread Number
Three Threads
Needle Number
Double Needles
Stitch Type
Lock Type
Flanging Thickness
<70mm
Flanging Width
27mm
Max Rotate Speed
4000rpm
Air Presure
0.4-0.8MPa
Sewing Head Type
Juki6900
Total Power
0.75kw
Power Supply
220V 50/60 Hz
Transport Package
Wooden Case
Specification
set
Trademark
Genmax
Origin
China
HS Code
84522190
Production Capacity
1000sets
Product Description
If you need more detailed information and other models, please email us. We will promptly reply to you.Japanese JUKI MO-6900 sewing head.
Double straight needle design.
With auto oiling system ensuring sufficient lubrication, with cartridge oil filter,easy for replacement & cleaning.
Push-button type stitch length regulator, changing the cam is not necessary.
With thread & needle cooling system, avoid its breakage and avoid the stitch skipping either.
Double needle five thread synch ronous structure with upper feeding belt and lower feed dog system ensures precise feeding and perfect seam, and avoids material wrinkles during sewing process.
The sewing speed is controlled with imported needle position motor and control box.
Equipped with pneumatic auto presser foot and special encoder to position needles. Silence and stable running.
| Model | KB1 | KB1A | KB4 | KB4A |
| Max sewing thickness | 50mm | 60mm | 70mm | 80mm |
| Sewing head type | JUKI 6800 | PEGASUS | JUKI 6900 | PEGASUS |
| Press foot lift | 15mm | 12mm | 15mm | 15mm |
| Needle type | DC*27 | TV*64 130/21 | DO*21# | DP*21# |
| Flanging width | 23mm | 25mm | 27mm | |
| Number of sewing threads | 5thread | 4thread | 5thread | |
| Max sewing speed | 3000rpm | 4000rpm | ||
| Sewing stitch | 1-5mm | |||
| Needle bar type | Double bar | |||
| Motor power | 0.56kw | 0.75kw | ||
| Air pressure | 0.4-0.8Mpa | |||
