Hot Sale Fixed Beam Gantry CNC Milling Machine for Column High Precision Machining

Product Description

Product Description
Main characteristics of machine tool
TK42 series fixed beam gantry CNC milling machine for high-speed steel, carbide cutting tools, ferrous metals, nonferrous metals and some non-metal parts for roughing and finishing, can be a variety of board, disk type, box type , rack, pedestal, column and other high precision machining of large parts for CNC machining. After a workpiece clamping, automatic completion of milling, drilling, boring, reaming and tapping and other machining processes.The case of mounting accessories milling ram in the lower side, the workpiece can achieve five-sided machining.
The ram I is an all inclusive ram structure. The Z-axis guide rail pair adopts the sliding guide rail pair in the form of guide rail quenching and plastic pasting.
The front bearing of the main shaft of the ram boring and milling head adopts group bearings, so that the main shaft has high precision, high load and low temperature rise. It can not only withstand large power and large torque cutting, but also has high precision and life of the main shaft.
The drive motor and spindle motor of the three coordinate axes adopt imported AC servo motor and AC spindle motor Each coordinate axis is controlled in a semi closed loop by an encoder. According to the customer's requirements, grating can be used to achieve full closed loop control to improve the accuracy and accuracy retention of the machine tool.
The machine tool can be configured with various accessory milling heads (optional by users) to realize five side machining.
Product Parameters

Project	unit	TK4216	TK4220			TK4225			TK4230
Table size -width	mm	1600	2000			2500			3000
Table size -Length	mm	3000	4000 6000			6000 8000			8000 10000
CNC system		SIEMENS-840DSL or FAUNC
grating		Spain FAGOR or HEIDENHAIN
Width of gantry	mm	2200	3200			3700			4200
table stroke(X)	mm	3500	4500	6500		6500	8500		8500	10500
Travel of carriage on beam(Y)	mm	2700	3200	4000		4000	4200		4400	4800
Vertical stroke of spindle(Z)	mm	1250	1250			1500			1500
Square ram size	mm	400x400	400x400			500x500			500x500
Distance from spindle end face to workbench	mm	250-1500	950-2200			750-2250			750-2450
Main motor power	kW	22/33	22/33			37/51			37/51
Spindle speed	r/min	20-2000	20-2000			10-2000			10-2000
Maximum output torque of main shaft	Nm	1000	1000			2000			2000
spindle taper	BT	50
Machine tool accuracy (with grating)	Positioning accuracy and repeated positioning accuracy		X/Y/Z-axis shall be implemented according to GB/T19362.1/2003
rapid traverse X	m/min	8
rapid traverse Y	m/min	8
Worktable bearing	Kg/m2	1500	2000
Guide rail form		Schneiberg or THK or HIWIN
		Square ram sliding guide rail
Ball screw		Germany Yifu or THK
gas supply	MPa	0.6
Machine weight	t	52	55		82	110		135	160		180

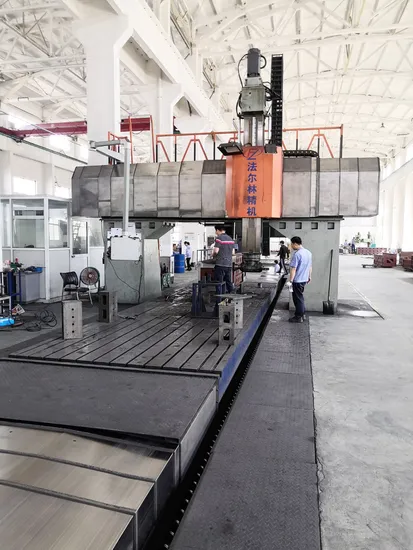

Detailed Photos
