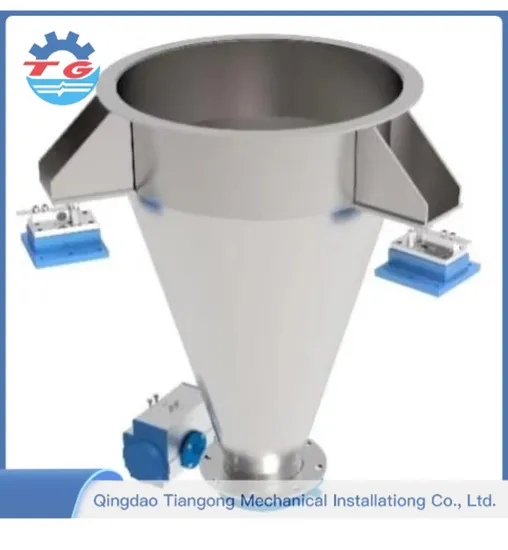

Exceptional Quality Y5820 Electronic Batching Scale for Precise Powder Weighing

Product Description

model	Y5815
Range	1500 kg
Full range measurement accuracy (static)	0.2%
Effective capacity of hopper	≥0.75 m³
Fixed control number	1~6
Sensor	3~4
Range of force sensor	0~1000kg
Pneumatic discharge door limit switch
rated voltage	220v
rated current	3A
Output contact capacity	27VIADC

Use and Installation 1) During installation, it is essential to keep the rack hopper level; 2) The electronic scale instrument must be placed in the electrical centralized control room; 3) There are two forms of support for the batching scale, one is the three-point suspension type, such as the batching used on the sand mixer in the casting workshop Scale, users can set up three additional suspension rods to lift the rack onto the sand hopper above, so that the batching scale does not shake during operation Phenomenon (please pay special attention: the batching scale must not be supported on the casing of the sand mixer, or on the frame or flat surface with obvious vibration phenomenon) On stage); Another method is to support the lower part of the ingredient scale on a sturdy working platform, which is set by the user to have sufficient rigidity Support frame; 4) If dust prevention facilities are installed between the upper flange of the batching scale hopper and the belt feeder, or between the lower discharge door and the receiving equipment Flexible connections must be used; 5) The installation of sensors must ensure that their center is in a vertical position; 6) When installing protective covers for sensors, users should consider using flexible materials such as canvas covers and pay attention to the sealing performance of the protective covers.
