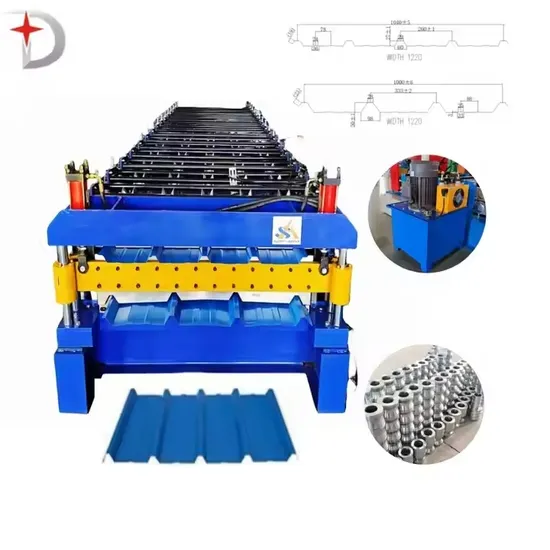

Tr4 Tr5 Rib Type Roof Panel Roofing Tile Double Layer Roll Forming Machine

Product Description

Tr4 Tr5 Rib Type Roof Panel Roofing Tile Double Layer Roll Forming Machine
Product Description
Profile Panel drawing
2.Technique parameters

Model number	Made in China Roll Forming Machine from DIXIN
Rolled material	0.3-0.8mm thickness, aluminium sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	1050mm
Feeding width	1250mm
Forming steps	13
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	70mm
Main frame	300H steel
Main motor power	4 kw
Pump power	3 kw
Medium plate thickness	14mm
Sprocket chain	1 inch
Drive type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

Company Profile
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation.With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need.Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.
4.Our Services
1.We can produce the special machine,send your drawing to us,we can design for you.
2.If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3.We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US80.
4.Engineers available to service machinery overseas.
5.If you come to visit our factory,we can book the room for you, car pick up to send.
FAQ
1. Q: Are you a manufacturer?
A: Yes,we are a manufacturer for cold roll forming machine over 12 years.
2. Q: if you can accept OEM? Design and manufacture according to our photo.
A: Yes, we can accept OEM, we owned an expert engineer team, professional design CAD drawings and use famous brand components according to your demands.
3. Q: What's the warranty for your machine?
A: We provide 2 years guarantee and provide lifetime technical support.
4. Q: How many workers are needed for the machine operation
A: One worker is enough, the machine uses an automatic PLC control system.
5. Q. Do you have after-sales support?
A: Yes, Our engineer can supply remote-video technical support and online support to teach your worker.
6. Q. Can you be responsible for transport?
A. Yes, we owned an expert export team, we can arrange for you to your destination port or address.
7. Q: What service can you provide before order?
A: About the pre-sale service, We provide professional solutions according to your demands, such as design, technical parameter, delivery flow, etc. At the same time, we can supply an invitation letter for your visit to our factory and showing the machine operation for you.
8. Q: What is the after-sale service?
A: We will supply lifetime technical support,quick-wear parts within 2 years, we also can provide field maintenance and repair service.
9. Q: Any other service?
A: We can help you purchase raw material for machine, help you check ship date, update for your ship date, etc.
10. Q: Any certification A: Yes, we have CE SGS ISO certification.
