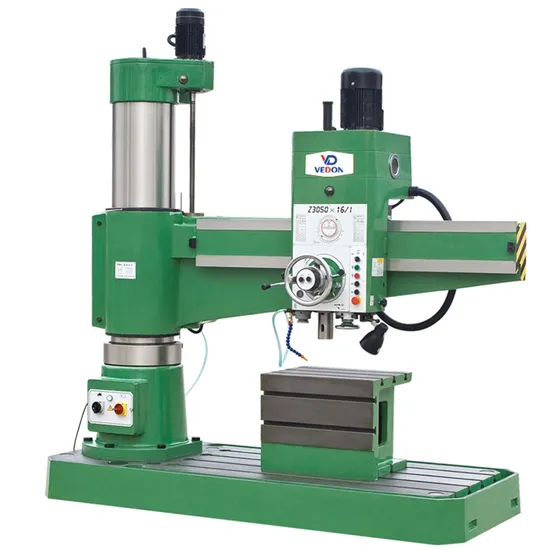

50mm Mechanical Radial Drilling Machine Z3050*16

Product Description

Specifications

Specification
Model:	Z3050x16/1
Max.drilling diameter:	50mm
Distance from spindle axis to column:	350-1600mm
Horizontal travel of headstock on arm:	1250mm
Distance from spindle nose to base surface:	320-1220mm
Swivel angle of arm:	±180°
Spindle taper:	MT5
Range of spindle speed:	32-2500rpm
Number of spindle speed:	16steps
Number of spindle feed:	16steps
Spindle travel:	315mm
Power of the main motor:	4kw
Worktable size:	630*500*500mm
Overall dimension:	Overall dimension
Machine weight:	3500kg

Machine Details
SPINDLE BOX
Fixed-range machining, spindle forwardand reverse rotation, speed change, neutral gear and other actions are all controlled by a handle.
HIGH FREQUENCY QUENCHING COLUMN
The columns are all high-frequency quenched, with good rigidity, high surface finish and long service life.
HIGH-PRECISION SPINDLE
Spindle taper: MT4
Speed: 22-1300
large spindle: stroke
CAST IRON TABLE
The workbench has undergoneaging treatment, is strong andstable, and has a long service life.
