China Foshan Soft Draw Face Tissue Paper Packing Machine

Product Description

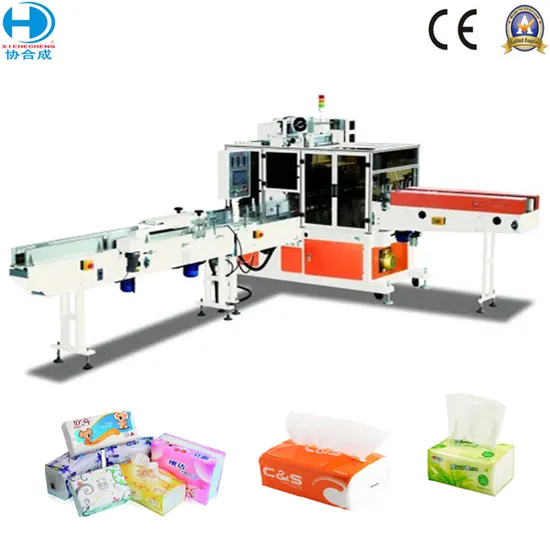

Automatic Soft Face Tissue Facial Tissue Paper Packing Machine

Napkin Tissue Facial Tissue Automatic Packing Machine
Machine size(mm)	3380L*3850W*1720H	Air pressure(Mpa)	0.5-0.6(user supplied)
Production size(mm)	(125-200)L*(90-165)W*(20-130)H	Voltage(can be ordered)	380V 50Hz(3-phase)
Speed(bags/min)	20-60	Machine weight(kg)	About 1500
Power(kw)	4.5	Packing material	CPP PE and so on

Automatic Napkin Tissue Production Line
Technical Parameters for Automatic Napkin Tissue Production Line

XHC-CJ-A	Napkin tissue folding machine
Machine size				2380*750*1570mm	Folding way	1/4, 1/6 ,1/8 so on
Width of tissue				200-400	Dia. of tissue	<=1200mm
Speed				600Pcs/min	Counting	Electronic
Total power				2-5kw	Embossing	Steel to rubber/steel to steel/steel to paper (optional)
XHC-FD-C		Automatic napkin tissue transfer
PCS/bag				10-100pcs	Air pressure	0.5-0.6Mpa(User supplied)
Total power				0.5-2kw	Voltage	380V 50-60Hz(Three phase)
Speed				10-40bags/min	machine weight	500-1000kg
XHC-FJ50A/B/C			Automatic napkin tissue packing machine
Machine size				2840*2650*1720mm	Air pressure	0.5-0.6Mpa(User supplied)
Production size				A(70-110)*(65-105)*(20-55)mm B(105-130)*(80-125)*(20-55)mm C(125-140)*(90-135)*(20-55)mm	Voltage	380V 50-60Hz(Three phase)
Speed				25-70bags/min	machine weight	about1500kg
Total power				4.68-5kw	packing material	CPP PE CPP PE and so on

Automatic Facial Tissue Production Line
Technical Parameters for Automatic Facial Tissue Production Line

FT Facial tissue making machine
Machine size(mm)	2T-10T	Air pressure(Mpa)	>0.4(user supplied)
Longitudinal cutting knife	2-10 front sets,2-10 rear sets	Voltage(Can be ordered)	380V 50Hz (3-phase)
Speed	500-1000pcs/min	Machine weight(kg)	About 3000-8500kg
power(kw)	3-11kw	Vacuum system	7.5-22KW

FC Log saw facial tissue cutting machine
Machine size(mm)	4600*1700*2500mm	Air pressure(Mpa)	0.5-0.8
Log length	500mm-5000mm	Voltage(can be ordered)	380V 50Hz
Speed	20-120cut/min	Machine weight(kg)	2500-2800
Power	13	Dia. of the blade	Φ610mm

RC300C Full Automatic Plastic Film Facial Tissue Paper Packing Machine
Machine size(mm)	3650L*6000*1850	Air pressue(Mpa)	0.5-0.6(user supplied)
Production size(mm)	(120-200)L*(90-150)W*(20-130)H	Voltage(can be order)	380V 50Hz(3-phase)
Speed(bags/min)	25-80	Machine weight(kg)	About 3000
Power(kw)	5.68	Packing material	CPP PE and so on

Main Features
1 Adopts advance control of SIEMENS' PLC programming and touch screen to set up.
2 Adopts trouble tracing and alarm system, the trouble can be found and solved more easily.
3 The driving system adopts advance variable frequency speed regulating control and drive with stepping motor, has the features of accurate control and locating compact matched movement.
4 With the automatic oil-filling circular lubricating system, the use life of the machine parts have been extended greatly.
5 With adopting static electricity removing device, the packing effect is more perfectible.
6 With the intelligent tem-controllor, the temperature adjustment is flexible.
7 It can be equipped with auto-perforating device, which is for various tear-off outside.
8 Automatically print production date and the location can be adjusted from up to down, from left to right. Oure Certificate
Our Factory
Loading & Shipping Why Choose Us 1. We are specialized in manufacturing Automatic tissue machine for 10 years. 2. We have a whole complete service, include researching, designing, manufacturing, selling and after-sale service. To keep the best product what you want. 3. Our company located in Nanhai, Foshan city which near Guangzhou and HongKong. It's expedient to export for us. 4. 100% QC inspection and debugging before shippment. 5. 100% rest assured after-sales service. Our service
Pre-sale service
Our professional sales team provide the professional consultation and best solution for actual situation and budget. Our professional researching-designing department can design the specific specification machine what you need
After-sale service
1.We provide door to door installation, equipment debugging technical training service and so on.
2. Warranty: 1 year quality assurance.
3. Our after-sale team have a rest assured global presence service even over the warranty period for you.
