10m 12m CE ISO High Quality Self Propelled Scissor Lift
| US$2,999.00-9,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GTJZ
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Lift Rated Capacity
450kg
Platform Extend Capacity
110kg
Max.Platform Height(B)
6m
Max. Working Height(a)
8m
Overall Length(C)
1850mm
Overall Width(D)
790mm
Platform Size
2270*1120
Platform Extend Length
900mm
Wheelbase
1870mm
Lifting Motor/Moving Motor
24/3.3V/Kw
Max.Drive Speed
3.5/0.8km/H
Lifting Speed(up/Down)
100/80s
Anerold Battery
4*6/200V/Ah
Charger
24/30V/a
Max.Climbing Capacity
25%
Transport Package
Wooden Box
Specification
6-16 m
Trademark
YILU LIFT
Origin
China
HS Code
8428909090
Production Capacity
800units/Month
Product Description

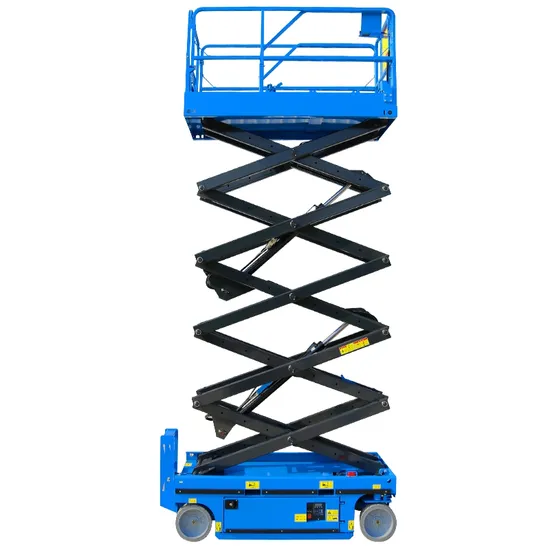

Electric Hydraulic Mobile Self Propelled Scissor LiftAerial Lift Platform equip high configuration with America TORJAN Battery, Americia CUITIS control system,Sweden bucher pump station,Italy doyle hydraulic valve and America white driving wheel.It is powered by DC, can be controlled by manually and move automatically and the moving speed is adjustable. There is many safety precautions, for example ,explosion-proof valves,spillover valve and emergency decline valve etc..
| Model | GTJZ08S | GTJZ08F | GTJZ10F | GTJZ12F | GTJZ14F | GTJZ16F | |
| Lift Rated Capacity | kg | 230 | 450 | 450 | 320 | 320 | 230 |
| Platform Extend Capacity | kg | 110 | 110 | 113 | 113 | 113 | 110 |
| Max.Platform Height(B) | m | 6 | 6 | 8 | 10 | 11.8 | 13.8 |
| Max. Working Height(A) | m | 8 | 8 | 10 | 12 | 13.8 | 15.8 |
| Overall Length(C) | mm | 1850 | 2430 | 2430 | 2430 | 2430 | 2850 |
| Overall Width(D) | mm | 790 | 1210 | 1210/890 | 1210 | 1210 | 1310 |
| Overall Height(Guardrails unfoldable) | mm | 2200 | 2200 | 2350 | 2470 | 2600 | 2620 |
| Overall Height(Guardrails foldable)(E) | mm | 1680 | 1670 | 1800 | 1930 | 2060 | 2060 |
| Platform Size(F) | mm | 1680*740 | 2270*1120 | 2270*1120/860 | 2270*1120 | 2270*1120 | 2700*1110 |
| Platform Extend Length(G) | mm | 900 | 900 | 900 | 900 | 900 | 900 |
| Ground Clearance(Retract/Elevated) | mm | 100/19 | 100/19 | 100/19 | 100/19 | 100/15 | 100/15 |
| Wheelbase | mm | 1390 | 1870 | 1870 | 1870 | 1870 | 2280 |
| Min.turning Radius | mm | 300/1750 | 0/2400 | 0/2400 | 0/2400 | 0/2400 | 0/2400 |
| Lifting Motor/Moving Motor | V/kw | 24/3.3 | 24/4.5 | 24/4.5 | 24/4.5 | 24/4.5 | 24/4.5 |
| Max.Drive Speed (platform Stowed/Elevated) | km/h | 3.8/0.8 | 3.5/0.8 | 3.5/0.8 | 3.5/0.8 | 3.5/0.8 | 3.5/0.8 |
| Lifting speed(up/down) | s | 100/80 | 100/80 | 100/80 | 100/80 | 100/80 | 100/80 |
| Anerold battery | V/Ah | 4*6/200 | 4*6/200 | 4*6/200 | 4*6/200 | 4*6/200 | 4*6/240 |
| Charger | V/A | 24/30 | 24/30 | 24/30 | 24/30 | 24/30 | 24/30 |
| Max.Climbing Capacity | % | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum working Angle(indoor/outdoor) | ° | 1.5/3 | 1.5/3 | 1.5/3 | 1.5/3 | 1.5/3 | 1.5/3 |
| Driving Wheel Size | mm | Φ305*114 | Φ381*127 | Φ381*127 | Φ381*127 | Φ381*127 | Φ381*127 |
| Overall Net Weight | kg | 1430 | 2250 | 2350/2260 | 2550 | 2980 | 3670 |
YILU electric and rough terrain scissor lifts offer you high performance and versatility ,boosting work site productivity.This type of aerial work platform lift is ideal for indoor maintenance or outdoor construction tasks. Electric scissor lifts have longer runtimes and promote quieter working environments. Engine powered scissor lifts traverse rough terrain, and the platform lifts plenty of tools and people to height.
