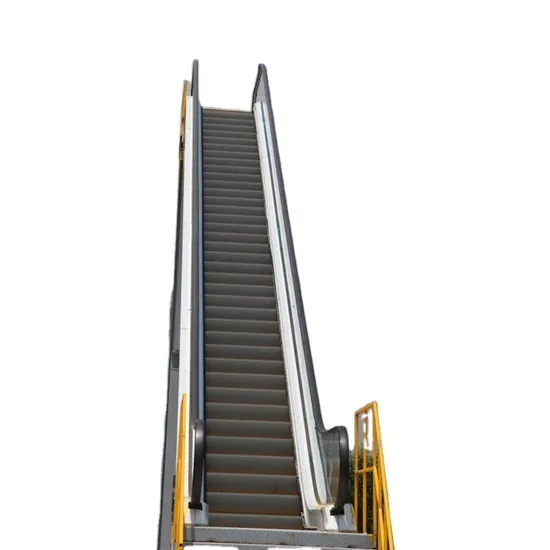

Asia FUJI Escalator Low Cost Resedential Home Commerical Escalator for Sale

Product Description

Product Description
Escalators Product Parameters

Model	FPL35-600(4500/h)				FPL35-800(6750/h)				FPL35-1000(9000/h)
tavelling height (MM)	Net weight (KN)	supporing load		Motorpower (Kw)	Net weight (KN)	supporing load		Motorpower (Kw)	Net weight (KN)	supporing load		Motorpower (Kw)
		R1	R2			R1	R2			R1	R2
3000	57.80	40.66	38.14	5.5	60.40	43.16	40.49	5.5	62.90	45.61	42.79	5.5
3500	59.40	42.26	39.64	5.5	62.30	44.92	42.13	5.5	65.60	48.17	45.18	5.5
4000	60.90	44.20	41.45	5.5	64.20	47.06	44.14	5.5	68.20	50.28	47.17	7.5
4500	62.40	46.13	43.27	5.5	66.10	49.20	46.15	7.5	70.90	52.84	49.56	7.5
5000	64.00	47.73	44.77	5.5	68.00	50.96	47.80	7.5	73.50	54.95	51.55	11
5500	65.60	49.72	46.63	7.5	69.90	53.10	49.80	8	76.10	57.46	53.89	11
6600	67.20	51.70	48.50	7.5	71.90	55.29	51.86	11	78.80	60.01	56.29	11
Note: the above dimensions are for reference onlyspecific dimension to the final sioning contract provided by the civil fioure shall prevail

Special Customization
We can produce customized elevators according to your requirements to cater to your buildings or decoration needs.Asia FUJI series escalator and sidewalk can automatically monitor the operating status of the escalator and sidewalk with advanced microcomputer control systems and self-diagnosis devices. Once faults or abnormalities are found, they will be displayed on the digital tube in real time, which fully protects stable and reliable operation of escalator and sidewalk. •Humanized board protects the brush function; it further protects the safety of passengers. •Automatic lubrication system with stable performance and good lubrication conditions to ensure the normal operation of the equipment; prolong the service life. •With uniquely shaped handrail entry device, like a "protective hand", effectively prevents foreign objects from entering the handrail drive area, making the operation of escalators and sidewalks safer and more reliable. •Asia FUJI series of escalator and moving walk uses the same manufacturing process. All safety devices and electrical safety requirements fully comply with GB16899 and international EN115 safety technology standards and the strict safety guidelines of FUJI elevator. Our Advantages
Our Advantages
Unique regional advantages and strong technical force
Fuji Elevator in Asia has been established for decades. Based on the high-tech industry, Fuji Elevator has experienced many changes in the elevator industry. Fuji Elevator is still in the front end of the elevator industry, constantly improving technology and services, and has become a leader in the elevator industry. Fuji Elevator Asia specializes in the sale of mechanical and electrical special equipment. Our products cover all kinds of Fuji series elevator products and services, such as passenger elevator, escalator, sidewalk, cargo elevator, dining elevator, etc.
VVVF frequency modulation technology, high technology is more reassuringAsia Fuji Elevator adopts low noise vector control inverter word frequency, voltage regulation and speed regulation (VVVF), which is an important sign of high-performance elevator at present. At the same time, it adopts the world's most advanced IGBT, which makes the inverter realize PWM control of high load frequency, greatly reduces the motor noise, and has small power consumption, directly prolongs the life of the motor
MINATURE ENERGY -SAVING HOST SYSTEM
Asia Fuji Elevator uses the latest permanent magnet gearless instead of the traditional worm and worm type traction machine, which realizes the miniaturization, thin, light weight and small size of the traction machine, eliminates the mechanical loss of the gear room, saves more than 60% energy than the previous elevator technology, and achieves the environmental protection requirements of no oil, no maintenance, minimum noise, minimum vibration and minimum machine room, It is a major technical breakthrough of the AC elevator. At present, most elevator manufacturers generally use energy consumption braking to consume energy on the resistance. The Asian Fuji Elevator drive system is equipped with regenerative braking unit (regenerative braking), which can feed the energy back to the power grid during the four quadrant operation of the elevator. Therefore, it can save 50% energy than the ordinary AC elevator and 20% energy than the ordinary frequency and voltage regulation elevator, thus greatly reducing the operation cost of the elevator.
PROJECT CASE
Unified Configurations in High-Standard
In the one hand, as kind of special machine equipment, once the quality is not good, the cost of later maintenance will increase greatly for you. So we do ONLY provide the one unified set of configuration in high-standard, while when you check with some other suppliers, you may find they could give different kinds of options in order to just ask customers to choose them, then, WHERE IS THE STANDARD QUALITY THEY CAN OFFER? They just eager to easily meet customers' price range, that is why they do provide different type of configurations. They could just easily change the different brands on main components to reduce their prices when customers ask discounts, that is also why there are some differences on price or specifications between our offer and some others. For us, we do only offer all our customers, the same one unified High-Standard configurations.
Company Profile
Asia Fuji Elevator(Linyi) Co., Ltd. is a joint-stock enterprise integrating R D, design, production, sales, installation and maintenance of all kinds of elevators. Located in Pingyi County, Linyi City, Shandong Province, it is a key construction project attracting investment in Linyi City in 2015, with a total area of 300 Mu and a total investment of 1.3 billion yuan. Products include passenger elevator, sightseeing elevator, household elevator, business elevator, medical elevator, villa elevator, cargo elevator, car elevator,escalator and sidewalk.
At present, the company has won the honors of "national quality inspection stable and qualified products", "national quality integrity excellent enterprise"and "high tech enterprise", and has won 11 technical patents in the elevator industry. In 2016, the company's leadership creatively positioned the company's development direction as"one-stop product service provider in the field of vertical transportation". marking Fuji Asia's official march into the field of three-dimensional garage, contributing to Asia's rich land strength in solving the "urban disease "of "parking difficulty".
Production process
The company has established an effective management system in marketing, manufacturing transformation, installation, maintenance and construction, quality control, after-sales service, etc., and various related testing instruments, manufacturing and construction equipment and process equipment are fully equipped, which are in line with elevator manufacturing and installation.
Certifications & Patents
Asia Fuji Elevator has experienced more than ten years of wind and rain, and has obtained the 3A qualification certificate of one-stop service of production, manufacturing, installation and maintenance approved by the state.
After Sales Service
1. 24 hours by 7 Days Online Support in English Speaking
2. On-site Installation by a professional team
3. Systematic Packing & Modular installation
FAQ
Q1.Why choose us?
A:Asia Fuji Elevator is a joint-stock enterprise integrating elevator R & D, design, production, sales,
installation and maintenance. Famous brand, already be confirmed by many customers Domestic and overseas Sample projects are customers voice for our quality.
Q2. What information is absolutely needed before asking for price?
A:1. How many persons? ( 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg etc..)
2. How many floors/ stops/ doors?
3. What's the shaft size? (width by depth)
4. Is there a machine room on the top of shaft?
Q3. How can we guarantee the good quality of your products?
A:In during the production process we will inspect all purchased and produced parts and take a record after put in crates, before shipping out we will do the final inspection and mock up the cabin and sling set, this part take photo and video as record to make customer being at ease.
Q4: What's the payment term?
A:30% in advance, 70% after customers inspection, before loading
Q5. What about the packaging?
A:All elevator parts will be packed into solid wooden cases. Some parts will be wrapped by the film so that guarantee the machinery part not be destroyed after long time transportation.
Q6. How to do with the elevator installation and maintenance?
A: We can send engineers to guide the installation and then train the workers about maintenance in the future. But in most situations, local workers can finish this work with our guidebooks and technology support, or you can ask the local professional elevator engineers to do this job, This can save much money for our customer. Of course, you can get support from our factory at any time.
Q7 . What's your guarantee time?
A:We can provide 18 months guarantee period, during this time, we will send free replacements to you. our service has no time limit.
