Crawler Mobile Crusher, Crawler Mobile Crushing Plant

Product Description

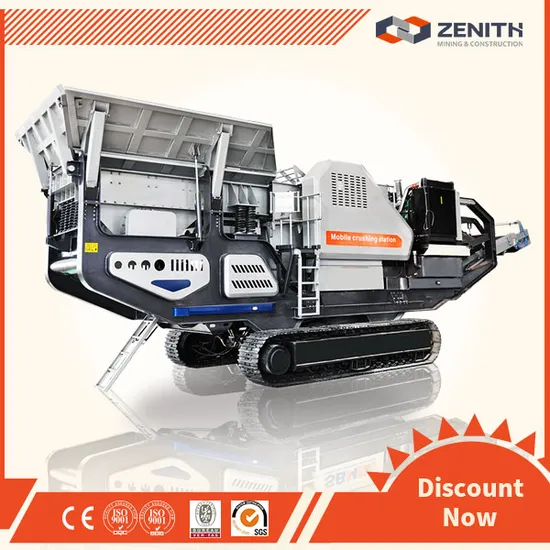

Crawler Mobile Crusher ,Crawler Mobile Crushing plant introduction:
Tracked crusher plant Shanghai Zenith Company is the leading manufacture of crushing and screening machine in China. We are professional in designing, manufacturing, and supplying high quality mobile crushing plant. To meet customers' specific needs, our new LD series mobile crushing plants can be equipped with jaw crusher, cone crusher, impact crusher, VSI crusher, and vibrating screen. The capacity is from 100 tons per hour to 600 tons per hour.
LD Series Track Mounted Mobile Crushing Plant Technical advantages:
1. The blasted rocks are fed into our mobile crushing plant by excavator or loader directly without using truck to transport the materials to the stationery crushing plant. There will be little traffic vehicles investment in the crushing plant. The fuel and tire consumption of the truck and the labor costs are greatly reduced.
2. Every LD series crushing or screening plant is one completed system, which integrated feeding hopper, feeder, crusher or screening, belt conveyor, power supply, and driving device into one unit. It can be easily and quickly set up and relocated at site without other special preparation and modification. This feature makes it is the excellent choice of contractor who need moving he crusher from site to site.
3. LD series jaw and impact crushing plants are the best solution of demolition recycling which heavily emphasizemobility and efficiency. The compact design ensures LD series crushing plants have the best transportability andmore crushing capacity.
4. In mobile crushing and screening process, whether the customer require two-stage or three- stage plant, the combination of LD series mobile crushing and screening plants can provide the customer optimumsolution, and our outstanding designing teamare ready to customize a plant o fit all the customer specific requirements.
Crawler Mobile Crusher ,Crawler Mobile Crushing plant technical data:

Model	LD-PE600x900	LD-PE750x1060	LD-PEW860
Feeder	GZD-960x3800	GZD-960x3800	GZD-1100x3800
Jaw Crusher	PE600x900	PE750x1060	PEW860
Main Conveyor	B800x8.5 M	B1000x9 M	B1000x9 M
Height of Main Conveyor (mm)	3200	3500	3600
Side Conveyor(Optional)	B450x3 M	B500x3.5 M	B500x3.5 M
Height of Side Conveyor (mm)	2800	3100	3100
Generator (KW)	180	250	300
Transport Length (mm)	11800	13500	13500
Transport Width (mm)	2900	3200	3200
Transport Height (mm)	3660	4120	4150
Total Weight (t)	40	60	63
