Premium 2.2nm NEMA23 Stepper Motor Driver Kit with Warranty

Product Description

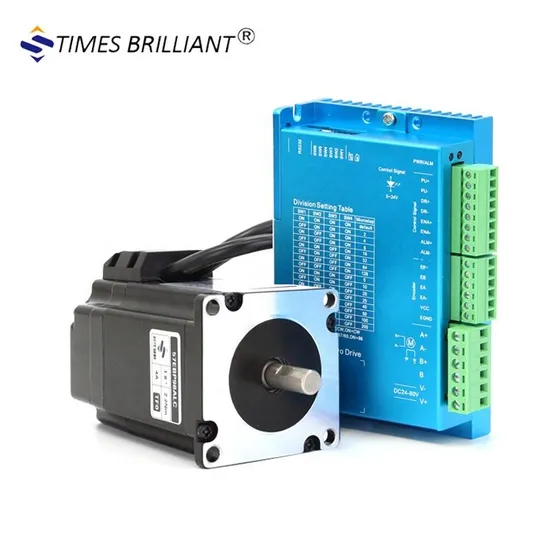

China supply CNC Nema23 2.2NM 4.2A hybrid servo Closed loop stepper motor with driver set


Note: the motor with magnetic ,so magnetic inspection fee will be incurred during transportation. Please contact shop assistant to supplement it.large quantities can dispense with it
Click to get your special discount


Click to get your special discount

Driver HBS57AJ: new 32-bit DSP digital nema23 closed-loop stepper motor driver, engraving machine, CNC equipment available. PWM current control, extremely low noise, high - speed torque than ordinary driver 40%. Voltage: dc16-70v (DC24V with 57 motors is recommended) subdivided: 256 subdivided


Product features
new dual-core DSP chip for 32-bit motor control;
advanced vector current, speed and position closed-loop control algorithm;
the ratio of static current and dynamic current can be set arbitrarily (within the range of 0-- -7a);
driving 42-60 full-series two-phase hybrid stepping servo motor;
high precision encoder with standard 1000 wire for motor;
optocoupler isolation difference signal input; Pulse response frequency up to 300KHZ;
setting of 16 subdivisions (400-51200), special subdivisions can be changed according to customer requirements;
it has protective functions such as overcurrent, overpressure, overspeed, overheat, tracking error, etc.;
