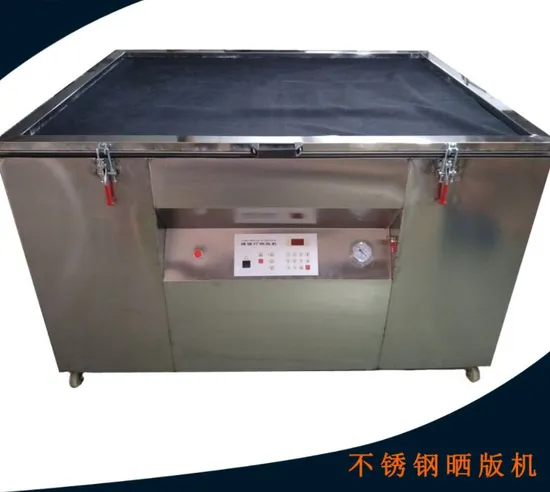

Screen Printing Frame Vacuum Screen Printing UV Exposure Machine

Product Description

Screen printing frame vacuum screen printing uv exposure machine
1. Product Description Application area:
Used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. When you put the film onto the plate into UV exposure machine, start it, the emulsion on the plate will appear a unseen imagine. This is important process on all plate-making technology. Flexibility Rubber Film ensure Film contact compactly with surface of slik when vacuum state
Function
1. Vacuum absorbing, the high quality elastic sealed rubber cloth, let the film tightly contact to the screen, and so ensures the clear designs;
2. Suitable for exposure the pad plate.
3. Famous Exposure system brand ensures the stable and even exposure.
4. Instance it comes into the vacuum condition, save much plate-making time.
5. Easy to operate, convenient to adjust the exposure time.
6. Choose high quality UV lamp which keep a long life span.
7. Whole jointing with zinco plate, both portability and firmly.
8. Exposal time auto adjustment and controlling.
9. High vacuum degree, easy to transfer and copy fine lines;
10. Automatic door of UV lamp shut off and turn on when exposure and finsi ensure long life of UV lamp;
11. The upper panel adopts toughened glass, nice rigidity and high tansparence.

Product name	Vacuum UV Exposure Unit Screen Printing Exposure Machine For Sale
Model No	YK-2500SB
Certificate	CE, ISO-9001-2000
Brand Name	Eco,China
Description	Used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. When you put the film onto the plate into UV exposure machine, start it, the emulsion on the plate will appear a unseen imagine. This is important process on all plate-making technology. Flexibility Rubber Film ensure Film contact compactly with surface of slik when vacuum state
Advantage	1. Vacuum absorbing, the high quality elastic sealed rubber cloth, let the film tightly contact to the screen, and so ensures the clear designs;2. Suitable for exposure the pad plate.3. Famous Exposure system brand ensures the stable and even exposure.4. Instance it comes into the vacuum condition, save much plate-making time.5. Easy to operate, convenient to adjust the exposure time.6. Choose high quality UV lamp which keep a long life span.7. Whole jointing with zinco plate, both portability and firmly.8. Exposal time auto adjustment and controlling.9. High vacuum degree, easy to transfer and copy fine lines;10. Automatic door of UV lamp shut off and turn on when exposure and finsi ensure long life of UV lamp;11. The upper panel adopts toughened glass, nice rigidity and high tansparence.
Parameter	1. Model number: YK-2500SB 2. UV Lamp brand: PHI-LIP Made In HOLLAND 3. Including a vacuum pump inside made in America 4. Glass Table dimension: 1510*2510mm 5. Max. Screen stencil size: 1500*2500mm 6. Voltage: 220V/50HZ 7. Lamp wattage: 3KW 8. Dimensions(W*L*H): 1650× 2650× 900mm 9. Weight:250kg
Usage	Used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. When you put the film onto the plate into UV exposure machine, start it, the emulsion on the plate will appear a unseen imagine. This is important process on all plate-making technology. Flexibility Rubber Film ensure Film contact compactly with surface of slik when vacuum state
Free fittings	1pcs uv lamp
Shipping way	By sea, by air, by express
Delivery time	Within 7 days from the receipt of payment
Loading seaport	Shenzhen or Guangzhou, China,as requested
package	Plywood case
Price term	FOB Shenzhen, CFR, CIF, FCA, EXW etc
Payment term	100% T/T in advance(negotiation)

2.Machine details pics
3.Company ProfileShenzhen Eco Printing Co.,LTD was established in 1999,with 20 years experience with a industry factory of research and development, production, sales, service integration of printing equipment ,which specializing in Pad Printing Machine,Screen Printing Machine,UV Curing Machine,IR Hot Dryer tunnel,Hot Stamping Machine,Flame Treatment Machine and Screen & Plate UV Exposure Machine etc. We passed ISO-9001-2000 certification in 2000, and we are a member of SGIA and all of our industrial printers had passed CE standard. we are the gold membership of made-in-china and got a huge credit all the world . There are customers from 98 countries to visit our factory and we had a good cooperation. 4.CertificatesWe passed ISO-9001-2000 certification in 2000, and we are a member of SGIA and all of our industrial printers had passed CE standard.
5.Packaging&Shipping 6.Contact details
