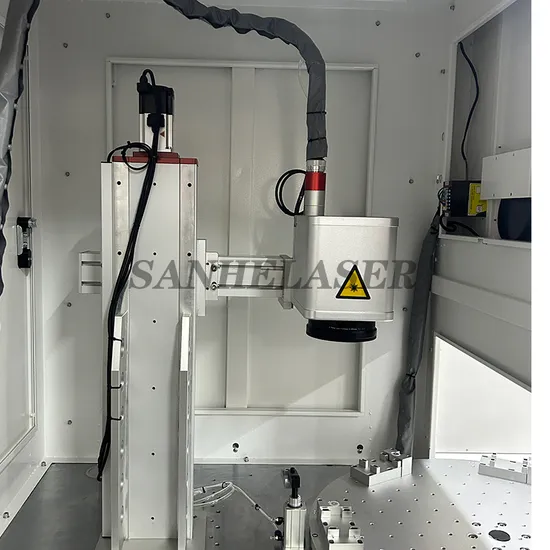

New Energy Spot Welder Easy to Learn Automatic Vibrator Laser Welding Machine 18650 Welding Battery Spot Welder
| US$10,000.00-15,200.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
3HE-MF1000W
Application
Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
Technical Class
Continuous Wave Laser
Control
Automatic
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Type
Automatic Laser Welding Machine
Colling Method
Water Cooling
Machine Model
3he-Mf1000W/1500W/2000W/3000W
Machine Power Consumeption
10kw-12kw
Aiming and Positioning
CCD and Red Right
Adjustable Facula Size
0.2-3mm
Laser Wavelength
1064nm
Electrical Reuqirement
380V+(-)10%/50Hz/60A
Host System Dimension
Optional
Transport Package
Plywood
Specification
optional
Trademark
SanHe
Origin
China
HS Code
8486204900
Production Capacity
200set/Month
Packaging & Delivery
Package Size
138.00cm * 93.00cm * 182.00cm
Package Gross Weight
800.000kg
Product Description
Product Description| Model | 3HE-MF500W | 3HE-MF750w | 3HE-MF1000w | 3HE-MF1500w | 3HE-MF/2500w |
| Optical Parameters | |||||
| Work Model | Continuous/ Modulation | ||||
| Max Power(W) | 500 | 750 | 1000 | 1500 | 2500 |
| Wavelength(nm) | 1080 | ||||
| Repetitive Rate(Hz) | 0-5000 | 500-5000 | 0-5000 | ||
| Pluse Width(ms) | 0.05-50 | 0.05-0.6 | 0.05-50 | ||
| Output Power Stability | <2% | ||||
| Red Light | yes | ||||
| Output Connector | QBH Customizable) | ||||
| Fiber Core Diameter | 25,50,100,Optional | 50,100,200, optional | |||
| BBP(mm. mrad) | 0.4,2,5 | 2,5,10 | |||
| Input Voltage(VAC@47-63H2 | 200-240, Single- phase | 340-420,Three- Phase-Five-Wire | |||
| Cooling way | Water Cooling | ||||
| Operating Temperature(ºC) | 10-40 | ||||
| Power consumption(kw) | <4 | <5 | <7 | <8 | <9 |
| Control Model | External RS232/ External AD | ||||
| Power Adjustment(%) | 10-100 | ||||
1. The fiber continuous laser welding machine uses 500W-2000W laser, the laser has a long service lifeand the service life can reach 100,000 hours. 2. The electro-optic conversion efficiency is high, and the energy of the power shaving is 25%-30% converted into laser, and the fiber conversion rate is more than 10 times that of the YAG laser. 3. The whole machine has no consumables. YAG pulse welding machine should replace the xenon lamp and lens regularly.
4. The whole machine has low energy consumption, saves electricity, high stability, maintenance-free, and low cost of use.
5. The laser welding energy density is high, welding speed is four times that of YAG pulse.the weld seam is thin,the thermal deformation is small, and the heat affected zone is narrow and deep.
6. Optical fiber output, easy to match with automated workbench or robot to improve production efficiency,and can meet 24 hours of continuous work.
7. Customizable large workbench and XYZ axis travel.
