Lab Programmable Constant Stability Climatic Climate Environmental Temperature Humidity Test Chamber

Product Description

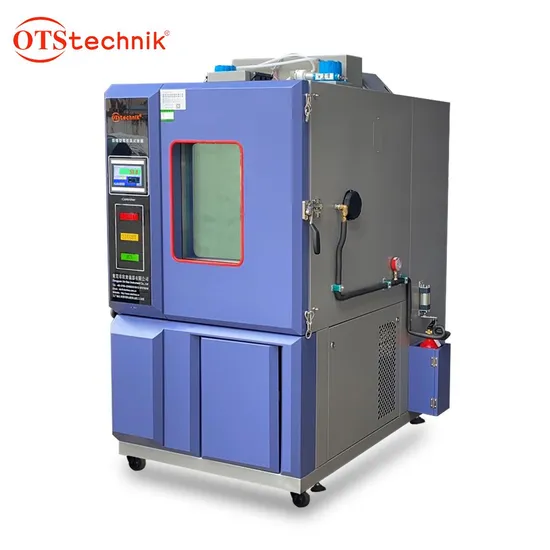

Temperature Humidity Test Chamber

Introduction:
Temperature humidity test chamber is use to test material heat,cold,dry resistance, humidity resistance.Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.
Advantage:
Specification:

Model	XB-OTS-150	XB-OTS-225	XB-OTS-408	XB-OTS-800	XB-OTS-1000
Inner size WHD (cm)	50*60*50	60*75*50	80*85*60	100*100*80	100*100*100
External size WHD (cm)	70*162.5*153	80*177.5*153	100*192.5*163	120*209*183	120*209*203
Window Size WH (mm)	500*600	600*750	800*850	100*100	100*100
Test Hole Size Diameter(mm)	2 holes 50mm of each	2 holes 100mm of each	2 holes 100mm of each	2 holes 100mm of each
Weight	320KG	370KG	460KG	560KG	590KG

Voltage	1Ø 220V 50Hz/ 3Ø 380V 60Hz/Customized
Temperature range	-70ºC ~180ºC
Humidity range	10% ~98%RH (5%~98% R.H. customized)
Temp.& humidity control fluctuation	≤±0.5ºC, ≤ ±2.5%RH
Indication resolution	0.01ºC, 0.1 %RH
Temp.&humidity Uniformity	≤±1.5ºC,≤±2.5% RH
Heat up&Cool down time	≤5ºC/min for heating; ≤ 1.2ºC/min for cooling
Cooling type	Air cold
Chamber materials	SUS#304 stainless steel for Inner chamber with thickness 1.5mm Steel plate for external chamber with thickness 1.5mm
Insulation materials	Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm
Mechanical Room	Refrigerating unit, water supply and drainage device, blower fan, power distributing Cabinet; Humidifying and humidity measuring water utilization control device
Electronic Box	Heat emission blower fan Distribution switchboard Test terminal of sample USB physical interface (need to be purchased together with centralized monitoring software) Residual current circuit breaker of main power supply
Heating Device	Basin heating humidifying method Stainless steel armored heater is adopted in basin humidification Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay) Water level control device, dry heating prevention device of heater
Humidifier	1.Basin heating humidifying method 2.Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay) 3.Water level control device, dry heating prevention device of heater
Control panel	Temperature (humidity) control display, over temperature protection setting device,emergency switch, run indicator, failure indicator
Compressor	Imported Compressor Fits wide range of pressure Higher heating efficiency Easy to maintain
Features	1.Unique design of the box within the wind circulation structure, to ensure that under the conditions of the test with the case of uniformity within the box within ± 2 ºC 2.Unique design of the humidity test when the top of the box anti-drip design to ensure that live test from water short circuit, surface water pollution 3.Using the latest environmentally friendly adsorption drying processor, effective control of the product when the surface temperature condensation 4.The refrigeration room is fully sealed and soundproofed to reduce machine noise and box resonance, machine noise control within 75db./Other Contact us

Controller	Screen Size &Display	7" TFT-LCD
	Down load data	By USB directly
	Language	ENG (other language can be acceptable)
	Number of Program Groups	120 Groups, each Group with 1200segments with 9999 cycles
	Connected to PC	YES
	Easy for Operation	YES

Advantage Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE Customer Support Services Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Related Products
Company Profile
Dongguan Xinbao Instrument Co., Ltd, with its own brand--OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, aviation, etc.
Manufacturing Technique Customer Photos Now OTS has its main production base in Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines under CNAS calibration, so customers can check the function and quality immediately. Equipped with over 30 workers in a metal plate department, OTS is capable to produce customized shells; What's more, OTS has enough stock to satisfy customers need in time. In the meanwhile, every machine must be examined for 3~days before shipment and with lifetime maintenance service. Certifications Packing&Shiping FAQ 1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2.What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3.Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine. 4.How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
