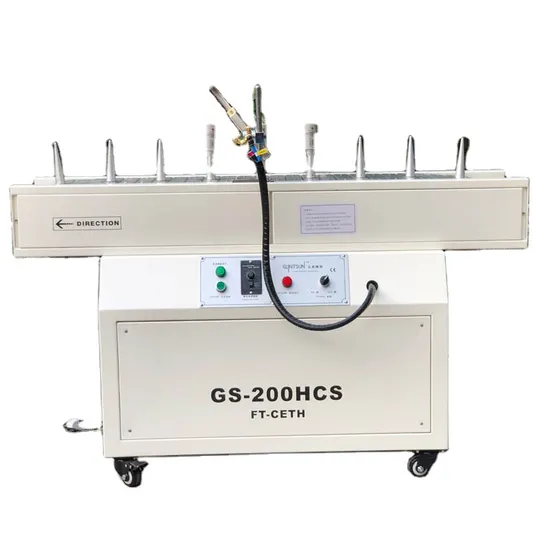

Plastic Bottle Flame Treatment Machine

Product Description

Flame treatment is the most widely used and cost effective pre-treatment for polyethylene (HDPE, LDPE, UHMW) and polyolefin based plastics prior to polymer bonding or printing. It consists of exposing the surface to be coated to a suitable oxidizing flame during a short period of time (0.2 to 3 sec.). The resulting change of the surface by creating an oxidized surface greatly improves the liquids ability to wet-out the surface thus creating a strong adhesive bond between the surface and the coating. Application
Flame treatment machine is mainly used for flame treatment on the surface of various bottles
and round PE and PP plastic products. After the plastic products processed by this machine are
printed, the ink can be more firmly attached to the printed objects.
Feature
1:The machine is work for fixed cylinder station, size adjustment, easy to load and unload.
2:The transmission part adopts imported micro-motors, and the speed is adjusted by step
speed regulation to meet the different requirements of different products.
3: The flame nozzle and the combiner is advanced and unique, and the fuel utilization efficiency
is high, which is an energy-saving product.
4: The whole machine has novel structure, reasonable technology, convenient operation,
movable casters at the bottom, and convenient movement.
Parameter:
Flame max height: 300mm
Flame size : Diameter 11CM method: automatic ignition
Rotation speed: adjustable
Combustion gas: petroleum gas 10-15ml/m
Combustion air: compressed air 8kgf/CM2
Power supply: 220V/50Hz
Rotation speed: infinitely adjustable
Dimensions: 800×1000×1000mm (length×width×height)
Weight: 70KG

Combustion air	compressed air 8kgf/CM2
Flame size	Diameter 11CM <D <40CM
Combustion gas	petroleum gas 10-15ml/m
Power supply	220V/50Hz
Rotation speed	infinitely adjustable

Feature
1:The machine is work for fixed cylinder station, size adjustment, easy to load and unload.
2:The transmission part adopts imported micro-motors, and the speed is adjusted by stepless speed regulation to meet the different requirements of different products.
3: The flame nozzle and the combiner is advanced and unique, and the fuel utilization efficiency is high, which is an energy-saving product.
4: The whole machine has novel structure, reasonable technology, convenient operation, movable casters at the bottom, and convenient movement.
Application
Flame treatment machine is mainly used for flame treatment on the surface of various bottles and round PE and PP plastic products. After the plastic products processed by this machine are printed, the ink can be more firmly attached to the printed objects.
1. who are we? We are based in WenZhou,ZheJiang, China, start from 2018,sell to Mid East(26.00%),Domestic Market(20.00%),Southeast Asia(18.00%),Central America(10.00%),Eastern Asia(10.00%),Eastern Europe(7.00%),South Asia(5.00%),South America(3.00%),Africa(1.00%). There are total about 101-200 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? heat transfer film,hot stamping foil,in mold label,silicone rubber roller,rubber roller 4. why should you buy from us not from other suppliers? 1,Since 1997 more than 20 years experience . 2 . more than 23 production lines for enlarge capacity and lower production cost 3 ,Fast respond ,professional team for quality control and work discussion . 4, Air treatment for workshop 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
