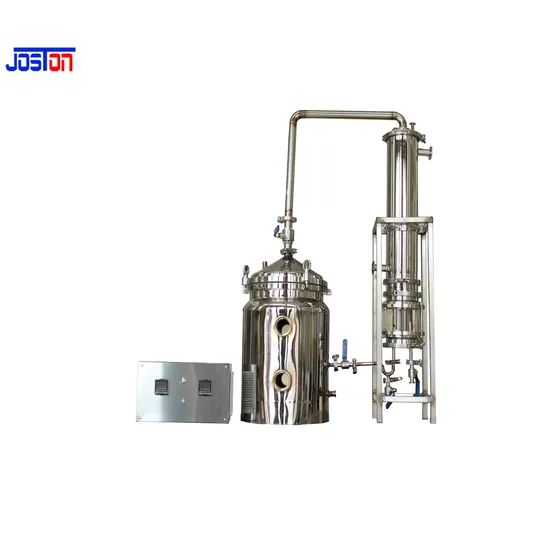

Joston Lab Scale Benchtop Small Batch Extraction Machine Household Essential Oil Extraction

Product Description

High Efficiency Lab Scale Homemade Distiller Essential Oil Extractor
Usage Scope:
High Efficiency Lab Scale Homemade Distiller Essential Oil Extractor uses the steam direct distillation method or use the jacket indirectly heating to distill the essential oil .
1. put the fresh or dried aromatic raw materials like the Vetiver, lemongrass, Aquilaria, eucalyptus, thyme. Rosemary, lemon balm, primrose etc
into the extraction distiller tank
2. heating the extraction distill tank by steam or electrical etc .
3.heating till inside shell the raw material boiling and vapor
4.condensate the vapor gas by condenser
5.collection the condensated extraction solution
6.collect the essential oil
for the steam distill type High Efficiency Lab Scale Homemade Distiller Essential Oil Extractor composition :
High Efficiency Lab Scale Homemade Distiller Essential Oil Extractor including the following unit : extraction tank ,stainless steel feeding basket ,condenser ,sub-cooler ,oil- water separator unit and pipeline .
essential oil distillation extraction machine use the steam directly distill from the extractor tank bottom ,the aroma oil will vapor outside with the steam together ,then cooling by the cooling water and chiller in the condenser and sub-cooler ,the oil with water will enter into the oil/water separator ,the oil and water will separate into two layers due to the different gravity . the aroma essential oil can be collected in the storage tank ,the water can be drain outside .
High Efficiency Lab Scale Homemade Distiller Essential Oil Extractor structural features:
1. The internal and external precision polishing of the equipment meets GMP requirements.
2. The equipment is mainly composed of distillation tank, basket, condenser, cooler, oil-water separator, etc.
3. The cover of distillation tank is quick opening, which is convenient for disassembly and lifting out the internal hanging basket. The heating mode is through steam heating.
4. The equipment uses the characteristics of volatile oil and solvent with different boiling points, which are volatile, to separate them from the solvent and collect them.
5. This equipment provides a new method for the production of special aroma essential oil extraction machine .
6. distill extraction machine capacity from 20L to 10000L .
7.material can be made SS304 or SS316L .

	MDS-30CE	MDS-50CE	MDS-100CE
Feeding Rates(L/h)	5L-30L/H	10L-50L/H	30L-200L/H
CBD Throughput (kg/h)	5 - 30 kg/h	10 - 50 kg/h	30-200 kg/h
Scraper Motor Power (w)	550W	750W	750W
Speed Regulation Mode	Electronic speed regulation	Electronic speed regulation	Electronic speed regulation
Max.Scraping Speed (rmp)	450	Frequency control of motor speed	Frequency control of motor speed
Heat Exchanging Area (m2)	1.00	1.70	2.00
Volume(L)	30L	50L	100L
Standard Feeding Rate (L/h)	5L~30L/H	10L~50L/H	30L~200L/H
Drive Motor Power (w)	200W	1500W	3000W
Heavier component discharge	5L~30L/H	10L~50L/H	30L~200L/H
Lighter component discharge	5L~30L/H	10L~50L/H	30L~200L/H
