Fabrics Automatic Air-jet Sample Loom for laboratory use

Product Description

Product Description

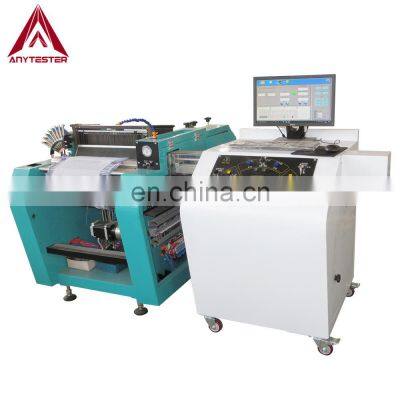

Product DescriptionAT247 Automatic Air-jet Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, air-jet weft insertion, mechanical let-off, mechanical beating-up and mechanical take-up. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.SpecificationModelAT247Reed width12inches (16, 20 and 24 inch, optional)Yarn linear density range5~500texWeft density30~45weft/min, selectableNo. of heald frame4~20Color selection1 colorLet-offActive electronic controlTake-upMotor controlSheddingDobby shedding, pneumatic controlBeating-upMotor controlAir pressure0.45~0.8MpaAir consumptionMax. 500L/minPowerA220V 50Hz, single-phaseAC380V 50Hz, three-phaseDetails & Features★ Consists of control part (computerized control platform) and mechanical part (loom);★Air jet weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;★Mechanical let-off, beating-up and take-up and pneumatic shedding; ★Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;★Heald frames up to 20pcs, easy to mount and dismount;★Professional software for designing or editing patterns;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
