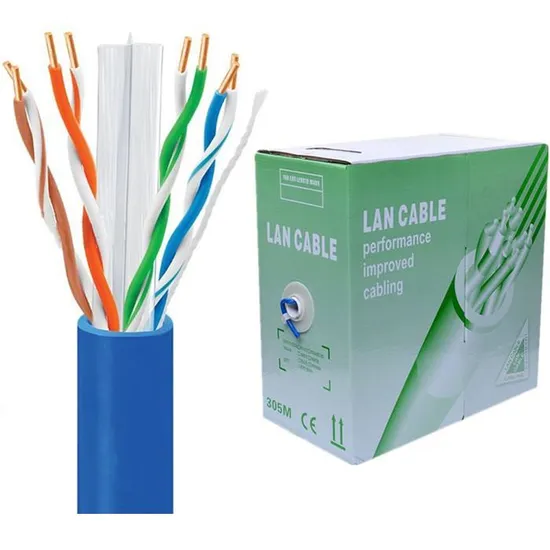

CAT6 Unshielded (UTP) Network Cable 1000FT (305m) for Ethernet Data

Product Description

Category 6 cable, commonly referred to as Cat6, is a cable standard for Gigabit Ethernet and other network protocols. This cable provides performance of up to 500 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T/1000BASE-TX (Gigabit Ethernet) .

Key Features
Cable Type: CAT6Cable Length (meter): 305 meters (1000ft)Cable Conductor Material: CopperCable Jacket Material: PVC/LSZHCable Gauge: 24 AWG or 23 AWGCable Color: BlueCable Performance: 500 MHzCable Structure: Solid/stranded
Technical Data:
Supporting 1 Gigabit EthernetFor connecting devices to a router or switch or simply an Ethernet network outletPower over Ethernet (POE) and Voice Over IP (VOIP) compliantFoil shielding can prevent electromagnetic interference and thus boost performanceCat6 500 MHz Foil Shielded FTP Snagless Patch Cable
Transmission characteristics

Frequency	Return Loss	IL	NEXT	PSNEXT	ELFEXT	PSELFEXT	ZO	Transmission Delay
MHZ	≥dB	≤dB	≥dB	≥dB	≥dB	≤dB	ohm	≤ns/100m
1	20	2.1	74.3	72.3	62.3	65	100±15	570
4	23	3.8	65.3	63.3	53.3	53	100±15	552
10	25	6	59.3	57.3	47.3	45	100±15	545.4
16	25	7.6	56.2	54.2	44.3	40.9	100±15	543
25	24.3	9.6	53.3	51.3	41.3	37	100±15	541.2
62.5	23.6	15.5	47.4	45.4	35.4	29.1	100±15	538.6
100	20.1	19.9	44.3	42.3	32.3	25	100±15	537.6
200	18	29.1	39.8	37.8	27.8	19	100±15	536.5
250	17.3	33	38.3	36.3	26.3	17	100±15	536.3

Differences Between UTP and STP

The S stands for Shielded, the U stands for Unshielded, and the TP stands for twisted pair for both
For most common uses, it does not really matter whether you use STP or UTP as both would probably perform well


Application

Each cable is fully tested, quality inspected, and meets all TIA/EIA Cat6 standards. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels, and provides universal connectivity for LAN network components such as PCs, computer servers, printers, routers, switch boxes, network media players, NAS, VoIP phones, PoE devices, etc

Innovative Craftsmanship for Maximum Performance and Security
Solid Cable Design
Simple installation,durable when it comes to impact and abrasion
PE Insulation
Easy to stretch with low resistance and allowing for a further transmission
4-Pair 8-Core Twisted Pair
High-precision twisted cable, reducing resistance and allowing for a better flow of electrons
PVC CMR Jacket
Built to withstand high levels of stress, pulling, and pushing
