Automatic Roll Welded Wire Mesh Welding Machine for Panel and Roll Mesh

Product Description

Product Description

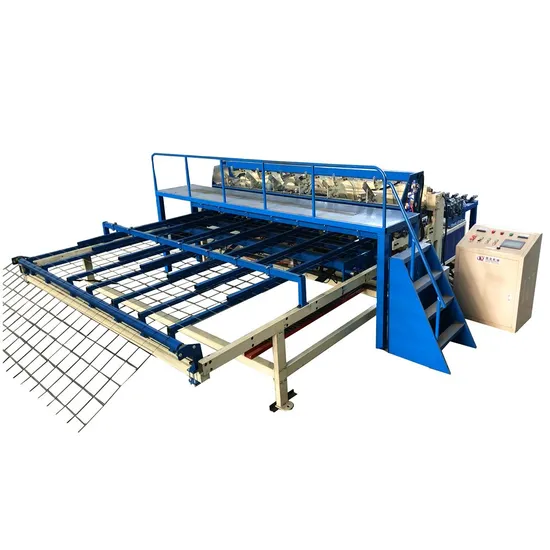

Automatic welded wire mesh welding machine
(1)This machine is improved by our company according to the needs of customers.the machine has added an intelligent roll mesh system on the basis of the original one,which can adjust the roll mesh speed according to the welding speed of the machine, so as to make the mesh roll even and beautiful.
(2)After the mesh roll is bundled, the system will automatically unload the mesh roll, saving labor.

Our Advantages
(1)The mesh size is directly set on the touch screen, which is convenient and simple.
(2)Vibration device is added to the cross wire feeding system to prevent wire winding.
(3)The line wire automatic wire feeding and the cross wire are pre-straightening and cutting.
(4)Cross wire adjustment on screen, line wire adjustment need move the welding electrode.
(5)The mesh roll length can be set by the control panel.
(6)We can easily adjust the welding current when we need to weld different wire diameters.
(7)We can set the output and stop the machine automatically after the mesh production finished.
(8)The finished product roll mesh is smooth and the error of opposite angle line is small.
Product Parameters

Model	KY-RWM-2000	KY-RWM-2500	KY-RWM-3000
Mesh width	Max.2000 mm	Max.2500 mm	Max.3000 mm
Mesh hole size	100 mm 150 mm 200 mm 300 mm	100 mm 150 mm 200 mm 300 mm	100 mm 150 mm 200 mm 300 mm
Wire diameter	3.0-5.0 mm	3.0-5.0 mm	3.0-5.0 mm
Welding speed	40-80 Times/min	40-80 Times/min	40-80 Times/min
Transformer	125KVA*3 125KVA*4	125KVA*4 125KVA*5	125KVA*5 125KVA*6
Dimensions	8.5 X 2.5 X 1.65 m	9.5 X 3.0 X 1.65 m	12 X 3.5 X 1.65 m
Weight	5500 KG	6500 KG	7500 KG
Note: we can produce the machines according to your requirements.

Detailed Photos
Certifications
Market and Customers
Factory Customer
Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, Poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.
Company Profile
⇒Factory History
Hebei Kaiye Machinery Equipment Co., Ltd., founded in 2002, is famous as "Hometown of wire mesh" in China. We are a professional manufacturer of wire mesh machinery.
Our company has been developing smoothly and quickly and now we have more than 150 employees.We can provide high quality machinery and excellent service.
⇒Factory workshop
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.Our main products: wire mesh welding machine, 3D panel production line, reinforcement mesh welding machine, EPS panel production line, Gabion mesh machine, Chain link fence machine and so on.
⇒Factory R&D Team
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years.
Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers. FAQ
Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in wire mesh field more than 20 years.
Q: What your machine can weld wire?
A: black wires,iron wires,galvanized wires.
Q: How to confirm the quality before you place the order?
A: We warmly welcome your friends and you come to our factory to visit. We have the ISO 9001 Certificate and other Certificates.
Q: How do you guarantee your machine's quality when producing?
A: Our services are always by your side, We have our technicians to inspect the parts of the machine every day, the machine will be adjusted well in our factory before shipment ,all the parts are in good condition.
Q: Can you still offer me the best after-sale service?
A: As we all know, the after-sale service is very important for buying machines, if you have any problem, please feel free to call me and email me.
⇒Our engineer can also go to your country to help you install and train works for you.
»Please reply the questions as below for we give you the best price:
1. Wire diameter : From mm to mm.
2. Line wire space : From mm to mm. Cross wire space : From mm to mm.
3. Mesh width: 1200mm,1600mm, 2100mm, 2500mm, 3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)
5. Do you want to weld wire mesh panel or mesh in coil ?
6. Is the auxiliary equipment also require ?
If you have any interest in wire mesh fence panel welding machine or other wire mesh machine products,please feel free to contact with us.
I hope we can provide you with the best machines and services.
