Bi Directional Static Pile Load Testing Instrument with Hydraulic Jack

Product Description

Bi Directional Static Pile Load Testing Instrument with Hydraulic Jack
I. Product Description
The Static Load Testing Instrument is used to apply vertical pressure, vertical pull-up force or horizontal thrust on the top of the pile step by step, and observe the settlement, pull-up displacement or horizontal displacement of the top of the pile over time, so as to determine the corresponding vertical resistance of a single pile. Test equipment for compressive bearing capacity, vertical uplift bearing capacity of single pile or horizontal bearing capacity of single pile
The static load test adopts the slow maintenance load method, that is, the load is loaded step by step. After each level of load reaches a relatively stable level, the next level of load is added until the test pile fails, and then it is unloaded to zero in stages. When considering the load characteristics of the actual engineering piles, the multi-cycle loading and unloading method can be used (the load of each level is relatively stable and then unloaded to zero). When considering shortening the test time, for the inspection test of engineering piles, the rapid maintenance load method can be used, that is, a first-level load is generally added every one hour.
II. Product Application
Pressure resistance, pull resistance, horizontal and bi-directional static load test of single pile
Static load test of shallow (deep) layer plate and rock foundation
Static load test of treated foundation and composite foundation
Pull - out test of rock bolt
Floor and bridge load test
III. Product Specification and Configuration
Specification

Model No.	SLT
Main control unit	Industrial Microcomputer
Display screen	12.1" true-color LCD display screen (high-brightness) 1024×768
Storage	8GB
Power supply	Device (AC 220V; DC 12.6V), Oil pump (AC 380/220V available)
Operation method	Touch screen
Data transmission	USB2.0
Measurement and control method	Wired/Wireless
Number of control points	The wireless mode supports up to 4 tests at the same time.
Data backup	Real-time automatic backup
Video surveillance	Independent HD camera
Working temperature	-30ºC~+55ºC
Weight	1.6kg
Dimension	375mm × 300mm × 90mm

Configuration

No.	Item	Qty	Remark
1	Host	1	Including GPRS, GPS, wireless communication modules
2	PLC CNC Base Station	1	Including wireless communication module; standard 4 channels; Used as Displacement Data Collect Box
3	Oil Pump Controller	1	Oil Pressure Data Collect Box
4	Host Communication Cable	1	Length=30m
5	FM Displacement Sensor	4	FM waterproof type, with 15 meters cable
6	Pressure Sensor	1	With connecting cable
7	Magnetic Stands	4
8	Controlled Communication Cable	1	Length=10m/piece
9	220/380V Input Cable	1	Length=2m/piece
10	220/380V Output Cable	1	Length=2m/piece
11	Touch Pen	1
12	Power Adapter	2	12V/5A/GST60A12-P1J (12V/5A)
13	Adapter Power Cord	2	220V power cord
14	GPS External Antenna	1	GPS antenna static load
15	Wireless Communication External Antenna	2	433M antenna (10 meters/piece)
16	Instrument Case	1
17	Accessory Box	1
18	Quick Connector	1	Straight, Quick connector
19	Others	1	User's Manual Book, Technical Video, 1 Year Warranty

IV. Product Photos

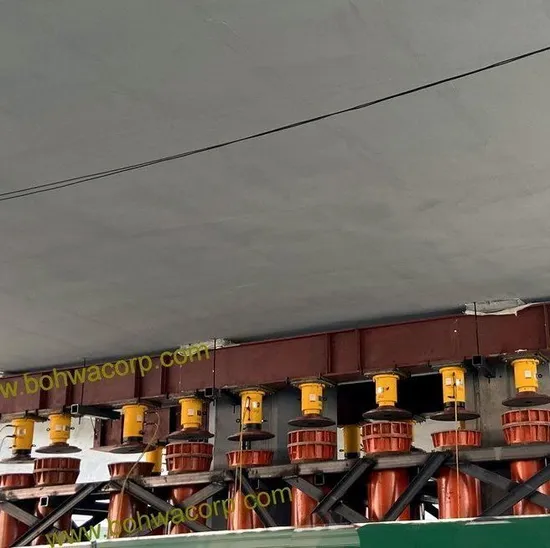

V. Using Spots
