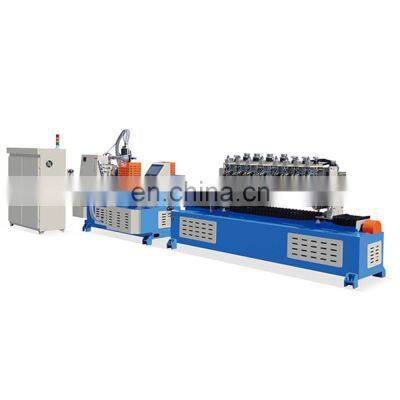

China High Speed Automatic Toilet Tissue Paper Core Machine Paper Tube Making Machine JS-PTE2-120M

Product Description

Product Description
Product OverviewAutomatic Toilet Tissue Paper Core Machine Paper Tube Making Machine"E" Series of paper tube machine,Designing idea simple,compact,stable.Standard for making paper tube 3''(ID76.2MM),Max wall thickness<3mm,biggest tube ID can up to 120mm.Mainly used for making small size and short tube.can cut into many sections at a time.Model can make paper tube with gluing,winding,cutting together.Application:Used for composite packaging can,small packaging material winding core,office use paper coreFEATURES AT A GLANCE 1. Independent research and development 2. High quality, high efficiency 3. PLC control system 4. Oscillating tool option 5. Design of modularization electric layout 6. Used for composite packaging 7. Servo tracking system synchronous 8. Bottom ply stop automaticallyPRODUCT SPECIFICATIONSModelPaper Core Tube Making Machine PTE2-120MDataDataParameterControl systemNumber of layer3-8layersPLC ControllerDeltaMax-diameter120mmMan Machine interfaceWeinview 6070T colorful touching screenMin-diameter20mmProgram editionJS-PTM4.2Max-thickness3mmInverterYaskawa 7.5kwMin-thickness0.8mmActuator(Contactor)CHNTMandrel fixing wayFlange&tighteningSignal componentYaskawaRewind noseTwo noses one beltPneumatic componentAIRTACCutting way8 bladesAngle adjusting motorJIACHENGGluing waySingle side/double sidesSynchronism controlAxis servo screwFixing length wayEncoderSynchronism track cutting systemServo tracking system synchronousOperator1-2 personOutfit assembleProduction speed3-20m/minAuto falling tube holderHaveSpeed controlInverterBelt angleElectricalInput power380v,3phBelt adjustHydraulicSize(mm)Angle of main motorHaveMainframe:L*W*H6300*1700*2000mmStop when paper run outBottom ply stop automaticallyArea:L*W16000*7000mmAuto glue givingDiaphragm pumpWheel hub diameter215mmTension adjustCan chooseWheel hub height400mmType of paper standIntegralMin tread750mmBeltSailclothMax tread950mmAluminum foil heat sealing deviceCan chooseTotal weight4200kgsColor detect deviceCan choosePRODUCT CONFIGURATION1.With multi-blade cutting system,can cutting into final length,no need to re-cut.2.Main structure made by thick steels which are finished by processing of re-cutting and welding,make machine much more stable and strong3.Main transmission adopt gear reducer,low-noise,low-heating,high revolution,high torque.4.Main motor adopt Vector high torque inverter speed adjusting.5,Equipped with hydraumatic device to adjust belt tension,with belt tension sensor and belt angle sensor,both can be adjusted automatically.6.Equipped with synchronous cutting system,cutting table adopt high precision ball screw and high performance server motor drive.7.Equipped pulse length fixation control,cooperated with front feedback compensation function.8.Adopt double PLC control system,IO output control and functional operation separate control,to increase cutting reaction speed,with better cutting accuracy.9.With new control panel and big size colorful main machine touching interface.10.With multi functional bottom paper feeding device,will stop once paper break.11,With integral paper reel stand,glue stand,paper feeding assembly,all are electrical control.12.Design of modularization electric layout makes use,maintaining and repairing more convenient and scientific,13.With mould assistant installing device.14.Network module connect machine for remote monitoring and maintaining.15.Heat sealing device and color detector can be chosen16.Tension control can be chosen.Company ProfileWhy Choose Us?1. With 10 years' Experience2. Having ISO 9001-Certified Factory3. Strong R&D capability4. High Quality Guaranteed5. First Class Service And Best PricesNew Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.ExhibitionFAQQ1: What it is advantage of your products?A1: Easily operation and simply maintenance. Also coat effective in market.Q2: How long for the guarantee?A2: 12 month free warranty.Q3: The engineer is available for overseas services?A3: Yes, we supply engineer who is good at communication and understand English.Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.Q5: What is the brands for the electrical system?A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.Q6: Which level of your products in market?A6: High and mid grade quality with nice price.Q7: Where are you?A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.Q8: Will you supply for OEM or ODM orders?A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.Contact with Us
