Hot Metal CE Approved Sumore Torno Price Auto Cutting GSK Control Machine CNC Lathe

Product Description

Product Description
New!!! Iron cast stand metal process horizontal Turning Lathe Machine with bar feeder 6 position automatic turret for Sale

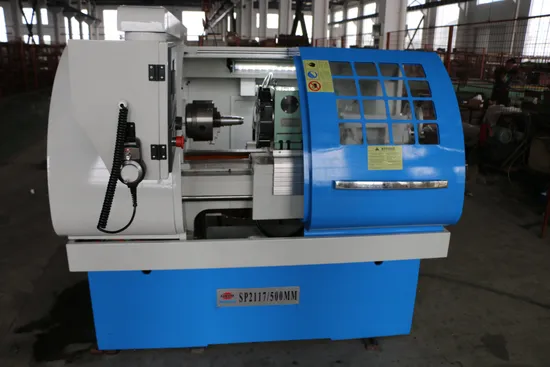

SP2117 Small CNC Horizontal Turning Lathe Machine for Sale cnc lathe machine is new machine and we won't provide used cnc lathe machine, this light industrial cnc lathe machine is for job work, it's quite competitive in the market. It is made in China but has similar quality as made in Taiwan cnc lathe, but it has the same quality as made in German cnc lathe machine. Features / advantage of cnc lathe machine is as below:
1. Engineers from high grade castings.
2. The lathe bed is made of heavy casting. It has gone through at least twice aging quality tests and ultrasonic frequency quenching.
3. Induction hardened bed.
4. The cutting tools carrier is equipped with 4-station, or 6-stations tool holder.
5. All machines have to pass the checklist of the machine precision before shipment
6.The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency
7. Electric turret and gang-tools turret can be both installed.
8. Fully enclosed protective cover.
Product Parameters

Model	SP2117
Swing over Bed	360 mm
Swing over Carriage	150 mm
Distance Between Centers	450 / 700 mm
Moving Speed of X Axis	4,000 mm/min
Moving Speed of Z Axis	7,600 mm/min
Spindle Bore	60 mm
Spindle Taper	MT6
Spindle Speed	150 - 2,500 rpm
Tailstock Quill Taper	MT4
Tailstock Quill Travel	100 mm
Motor Power	3,700 w
Voltage and Frequency	Customerized
Packing Size (LxWxH)	1,835 / 2,085 x 1,200 x 1,840 mm
Net Weight	1,275 kg
Gross Weight	1,450 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE certificate. Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
