Agricultural Machinery Disc Harrow Heavy Duty Harrow Three Points Suspension

Product Description

Yucheng Hongri Machinery Factory
Product Technical Parameter Product Description:
Name: Agriculture Light Duty Disc Harrow for Farm
This 1BQX are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.

Model	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.2	1BQX-3.4
Working Width (mm)	1100	1300	1500	1700	1900	2200	3400
Working depth (mm)	100-140
No. of disc (pcs)	12	14	16	18	20	24	42
Diameter Of disc	460mm/ 18inch
Weight (kg)	200	220	240	260	290	350	1100
Linkage	Three-pointed mounted						Trailed
Matched power (hp)	12-15	15-18	25-30	30-35	35-40	55-60	80-100

There are 1BQX-1.1, 1.3, 1.5, 1.7, 1.9, 2.2 suitable for 12-60 HP tractors

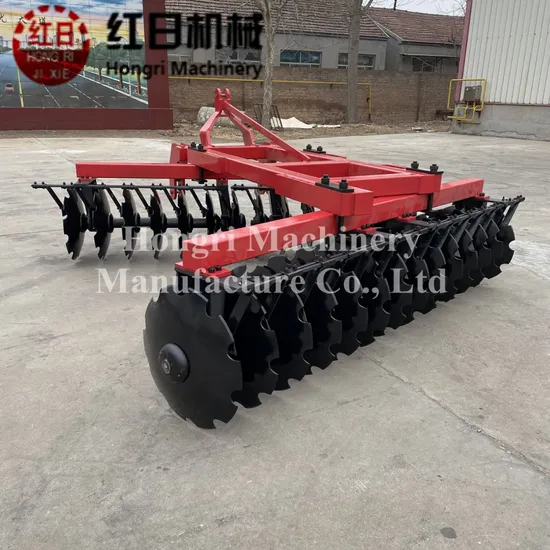

-----------Product Photos---------- Disc Harrow
1BZ series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and after plough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It is made of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.

Thanks to the accessories produced by our factory, the disc blade is our ace product.
Square shaft is 40 x40mm
The tube is made of steel
The shelves are 120x120x100mm square tubes
Main Feature
1)Steel selection of China's best Angang and Lingyuan steel, good quality is guaranteed. 2)Heat treatment process, strict control of temperature and time, high hardness and good toughness of disc blade.
3)Automatic spray equipment, disk surface smooth color uniform beautiful.
----------Product Introduction---------

Model	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4
Working width(mm)	2200	2500	3000	3400
Working depth(mm)	200--500
Diameter of disc	660mm
Thickness of disc (mm)	5
No. Of disc(pcs)	20	24	28	32
Weight (kg)	1350	1500	1600	1800
Matched power (hp)	80-90hp	90-100hp	100-110hp	110-120hp
Linkage	Hydraulic trailed with tractor

---------Customized Color &ODM/OEM--------
We absolutely accept ODM/OEM order because we are factory you can require paint color for the machinery.


-----------Packing & Shipping---------- Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.
After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently. --------------Company Profile------------

Business type	Manufacture
Location	Shiliwang Industrial Zone of Yucheng, Shandong,China
Year Established	2003
Occupied area	50 Acres
Company certification	CE, ISO9001
Main product	Disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter plowing blade, plough blade, soil-loosening shovel and so on. With good quality, excellent performance, our products annually export to countries around the world, and we have gained the majority of customers trust.

After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.
FAQ: 1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose Hongri for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than15years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "HONGRI" brand and "CE"ceitification; SGS certifications.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government.
If you have any questions, please feel free to contact me.
Thanks. Have a nice day!
