216mm Kiosk Thermal Printer for Self-Service Machine

Product Description

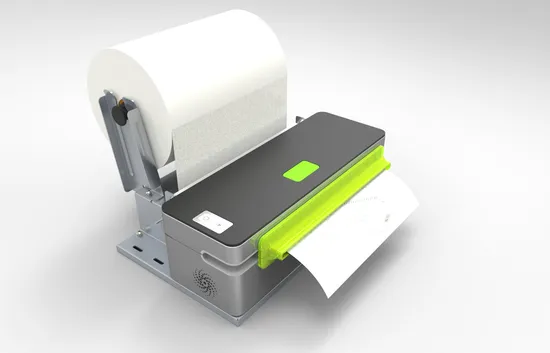

216mm kiosk thermal printer FOR self-service machine
Overview:RCT-4720 X216-II has the characteristics ofSmall size, fast printing speed and other characteristics, effectively improve the efficiency of terminal equipment,
Avoid the situation that the printing time of the first page is too long when printing in the traditional A4 format
Printers used to be used in end products. Second, the compact body design makes
The space utilization of end products is more convenient. RCT-4720 X216-II supports GDI at the same time
Picture and plain text printing mode, and can be freely switched between A4 page printing and printing
Long list printing. X216-II thermal printer is the best choice for terminal equipment printing
product.
Features:Small size, easy to integrate into end equipmentSupports 210mm wide printer paperSupport real-time control of print qualitySupports automatic paper feeding modeVoltage range:24V±10%Support USB/RS232 communication modesSupports GDI print modeThe function of black calibration bit ensures the consistency of bill lengthWith the function of paper will be full detection, early warning paper surplusSupport out of the paper detection function, the realization of ticket clip mode and bouncemode Product ApplicationsBanking, communications, medical, public safety, transportation, social insurance, energy, oilstation, water and electricity, government affairs, educationParameters:

Project	X216-II
Printing method	Line thermal printing
Printing width	216mm(2560dots)
Paper width	MAX216mm
Paper thickness	60~100g/m²
Paper diameter	Outer diameter:Max150mmInner diameter:Min25.4mm
Print resolution	300dpi
Dot density	11.8dots/mm
Paper Feed method	180°auto feed
Print speed	MAX120mm/s
Paper out mode	Flick ticket mode, clip ticket mode
Character set	FONT A:12×24(1.02×2.03mm)dot character FONT B:9×17(0.76×1.44mm)dot character Chinese character:Support for GB18030 Simplified Chinese (downward compatible with GB2312-1980) Note: GB18030 currently supports only double-byte zones 1, 2, 3, 4, and 5
Barcode	1D code:EAN8,EAN13,CODE93,CODE1282D code:QR,PDF417
Interface	RS232/USB
Receive buffer	2MB
Instruction set	ESC/POS
Operating System	windows XP/WIN 7/8/Linux/Andorid
Sensor	Paper test, paper will test, machine head opening test, machine head temperature test, black label test, paper out test, cutter paper jam test, paper blocking test
Cutter	Auto cutter,full-cut
Power	24VDC±10%,6A
Energy consumption	150W
Operating Environment	Temperature:0~50ºC Humidity:20~85%RH(No condensation)
Storage Environment	Temperature:-25~70ºCHumidity:0~90%RH(No printing paper, no condensation)
Reliability	Print Life:100KMCutter life:300000 cuts

About usEstablished in 2017, Shenzhen rCloud Technology Co.,Ltd ( rCloud ) is professional hardware & software solution provider for global gaming machine , which are focus on R&D manufacturing and marketing Illuminated card reader, RFID card reader, Hybrid card reader and Player Tracking System for Global Gaming System . To insist "Know what you need , Do what we can", we committed to becoming comprehensive solution provider for gaming industry .During these years ,We have worked with Novomatic ,EGT ,Advansys , princess and playtech etc. In Further development , we invest more to touch monitor factory which specialized in designing and manufacturing capacitive touch panel, Touch curved gaming monitor , LCD display etc.The total facilities are more than 5,000 square meters, in which over 2,000 square meters are 100 Class dust-free workshop. In order to provide our customers with high quality and satisfactory products, we improve the latest technology and equipment constantly. We trust that our accumulated experience, well-skilled manpower, advanced technologies and reliable quality control are the most distinguished factor to satisfy the customer's requirements.In the near future , We are the first choice of many of World's largest gaming manufacturers around the world .
FAQ
1.Q: What are your lead time ?
A:The order will be delivered within 7-10 days.
2.Q: How can I get samples ?
A:We can make out samples according to your requirement within 1-3 days,But ex- press and sample fee should be paid by customers.
3.Q: Do you accept personal customization ?
A:Yes we are professional manufacturer of hardware&software solution provider for gaming machine,Which are focus on R&D manufacturing and marketing Illuminated card reader,RFID card reader,Hybrid card reader and Player Tracking System for Global Gaming System.we have profession- al designer for your needs.
