High Quality High Efficiency Linear Way Ve-10 CNC Milling Machine

Product Description

Product Parameters

Model Name			VE 10 EN	VE 10 CN 24'
Item	Specification	Unit
Processing Range	X-axis Travel	mm	1050	1050
	Y-axis Travel	mm	600	600
	Z-axis Travel	mm	600	600
	Distance from Spindle End Fave to Table	mm	120-720	120-720
	Distance from Spindle Center to Column Guide Surface	mm	636	636
Table	Worktable Size	mm	550*1100	550*1100
	Max. Worktable Load	kg	800	800
	T-Slot	No.	5	5
	T-Slot Size/Spacing	mm	18*110	18*110
Other Attributes
Item	Specification	Unit
Spindle	Drive Type	/	Direct Drive	Direct Drive
	Spindle Speed	rpm	8000(standard)/10K/12K/15K(optional)	8000(standard)/10K/12K/15K(optional)
	Spindle Motor Power	kw	11	11
	Maximum Spindle Torque	Nm	120	120
	Spindle Dimension and Specification	/	ISO 7/24 Taper NO.40
Servo Axes	Rapid movement for X, Y, and Z axes	m/min	48/48/36	48/48/36
	X, Y, and Z servo motor drive modes	/	Direct drive linkage	Direct drive linkage
	X, Y, and Z servo motor speeds	rpm	3000	3000
	The diameter of the screws for the X.Y, and Zaxes	mm	Φ40/Φ40/Φ40	Φ36/Φ36/Φ30
	The pitch of the screws for the X, Y, and Z axes	mm	16/16/16	12/12/12
	The cutting feed rate	mm/min	1-10000	1-10000
	Minimum Feed	mm	0.001	0.001
Tool Magazine	Tool Magazine Capacity	No.	24	24
	Tool Magazine Type	/	Disc Type Mechanical Arm	Disc Type Mechanical Arm
	Tool Shank Specification	/	BBT-40	BBT-40
	Tool Shank Bolt	/	P-40T(45°)	P-40T(45°)
	Tool Magazine Maximum Too| Diameter	mm	Φ80	Φ80
	Maximum Tool Diameter (No Adjacent Tools)	mm	Φ150	Φ150
	Maximum Tool Length	mm	300	300
	Maximum Tool Weight	Kg	8	8
	Tool Change Time (Tool-to-Tool)	Sec	2	2
Main Precision	Positioning Accuracy	mm	±0.005	±0.005
	Repeat Accuracy	mm	±0.003	±0.003
Others	Machine Weight (Including Water Tank)	(Approx.)Kg	5.8	5.8
	Floor Space Requirement (Including Water Tank)	mm	2720*3350	2720*3350
	Machine Height	mm	2650	2650
	Others Power Capacity	KVA	25	25
	Lubrication Tank Capacity	L	4	4
	Coolant Capacity	L	350	350
	Air Supply Pressure Bar	Bar	6~8	6~8
Numerical Control System			Siemens 828D	Siemens 828D

Product Description

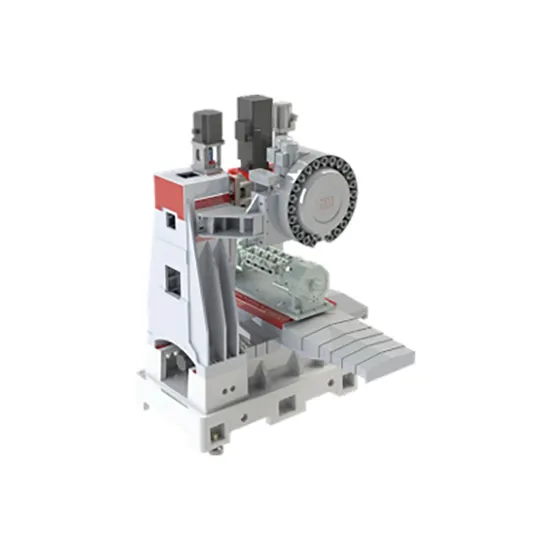

Bed, Column And Saddle
The bed, column, and saddle are composed of Meehanite HT300 grade cast iron, which includes very high dampening characteristics. The one piece bed casting and column are stress relieved to ensure machine geometry is maintained throughout the life. Wide spacing of the linear guideways ensures optimal support for the table and saddle in full travel of each axis. Heavily ribbed castings provide superior dampening for high speed machining and aggressive milling. The mating surfaces of all critical contact points including the column, linear bearing blocks, linear guideways, and table surfaces are fully ground to optimize fit and accuracy.
Guide ways
The X, Y, & Z-axis are standard with heavy-duty 45mm linear guideways. All the guideways are placed against ground shoulders to maximize rigidity and geometry.
Spindle
The permanently greased spindle bearings require no maintenance. The 8,000 rpm spindle is driven by a (7.5/11kW) AC servo motor. 15,000 rpm spindle is an option,upgrade toVE10IL. The four 70mm ceramic spindle bearings help with the concern of thermal growth on the 15,000 rpm spindle.
Ball Screws And Axis Drives
Each axis is driven using a high precision, fully ground ball screw. All the ball screws are supported on using angular contact thrust bearings and are perfectly centered between the linear guideways. The 40mm ball screws are driven directly using direct-coupled AC servo type drive motors eliminating vibration, noise, and backlash.
Fully Enclosed Machine Enclosure
The machine enclosure is made of heavy duty sheet metal to contain the chips and coolant. The entire machine is fully enclosed. The removable side doors allow direct access to the inside of the machine. The front door opening (40") allows for easily loading and unloading of work pieces.
Flood Coolant System
A dedicated flood pump provides high volume coolant to the machine tool. The coolant enters the head casting and exits through the bottom of the spindle to help control thermal growth. The mounted nozzles are fully adjustable to accommodate various tool lengths. The 200 L coolant tank provides adequate capacity for any application.
Lubrication
Automatic lubrication is provided to the linear guideways and ball screws via way oil. Oil is delivered by metered valves, which precisely control the volume. A low-level alarm on the CNC warns the user preventing possible damage to the guideways and ball screws.
