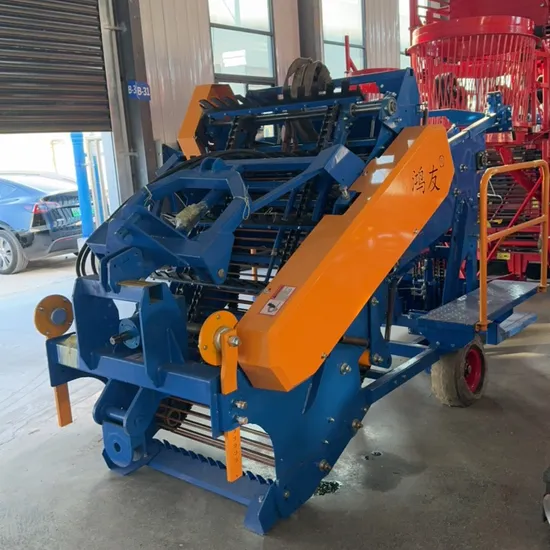

Combined Potato Harvester Ton Bag Type with Core Gearbox for Potato Application

Product Description

The main function:
1. The conveyor chain vibrates to separate the potatoes from the soil. 2. Our potato excavator is mainly used for harvesting tuber crops such as potatoes, sweet potatoes, peanuts, garlic, etc.
3. It has the advantages of high harvest rate, low skin breakage rate and easy operation.
4. Every machine has been field tested for a longer service life.
4UBF-100 advantages

Reduce labor intensity. The traditional potato harvesting method relies on a large number of people to dig and collect potatoes, which is not only time-consuming and laborious, but also causes a waste of human resources. The potato harvester can automatically complete the digging and collection work, reduce the labor intensity of farmers and improve production efficiency. Improve potato quality and yield. Traditional harvesting methods can cause damage to potatoes, but the potato harvester uses a gentle digging method to effectively reduce the damage of potatoes and maintain their integrity and quality. At the same time, the fast and accurate collection method prevents the potatoes from being exposed to the sun and dripping, thus improving the yield and quality. Save resources and reduce costs. The use of potato harvesters can quickly complete the digging and collection work, greatly shorten the working time and reduce production costs. At the same time, the structure is simple, the operation is convenient, farmers can quickly master the use of skills, improve work efficiency. Easy maintenance. Regular cleaning and lubrication maintenance of potato harvesters is relatively simple.
4UBF-100 can complete the digging, cleaning, sorting and bagging of potato crops at the same time, with diverse functions and simple operation, it is an ideal multi-functional potato harvester, and also a hot selling product, which is exported to more than 20 countries overseas and is loved by the majority of users.

	4UB-100 specification table
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Model	4UB-100	14	Matching suspension width	580mm
2	Structural style	pull-type	15	Type of excavation device	Set the blade
3	Walking mode	wheel type	16	Blade material	65Mn steel
4	Tire model	18*7-8	17	Digging depth adjustment range	0-250mm
5	Wheel number	2	18	Depth limiting mechanism type (depth limiting wheel, others)	others
6	Tire spacing (center)	1100mm	19	Pick up the smallest size	33.5mm
7	Minimum ground clearance	300mm	20	Type of cleaning separation device (vibration simple, other)	others
8	Working size (L * W * H)	3800*1550*1970mm	21	Conveyer type (grid chain Type, belt type, other)	Grid chain
9	Total weight	1140kg	22	Conveyor chain gap	Front: 50mm; Rear: 45mm
10	Working width	1000mm	23	Chain bar material	55chrome-silicon
11	Working performance	1.33-0.2ha/h	24	Collection methods	The fashion ton bag
12	Supporting power	≥70HP	25	Discharge method	Backward mechanical slant
13	Set the speed of the power output shaft	540r/min

To ensure the safe delivery of your products, we offer a range of packaging options including wooden boxes, iron boxes, and plastic film wrapping. You can select the most suitable option based on your specific requirements.

Dezhou Hongyou Agricultural Machinery Co., Ltd.

Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.

Our main products include five series of more than 50 varieties, such as potato harvesters, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and potato harvesters.

The company has passed the ISO9001-2008 quality system certification. We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery. We warmly welcome both new and old.

We have an old factory area and a new factory area under construction for producing and processing machines. There are finished product stacking area, machine processing area and production workshop.
