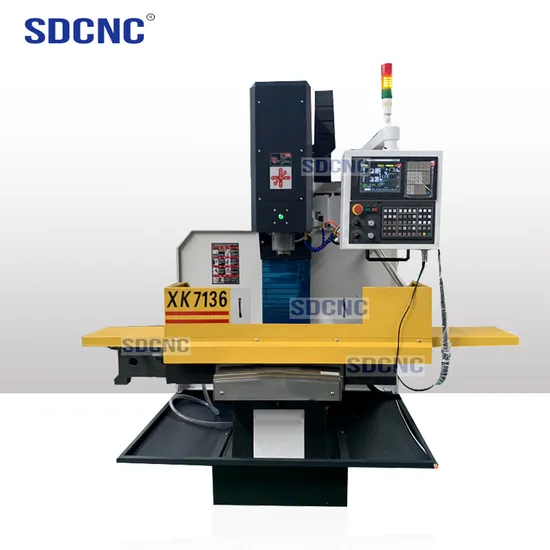

Xk7136 CNC Milling Machine 3/4/5 Axis Vertical Milling Machine for Metal Work

Product Description

The main performance characteristics : 1.CNC horizontal lifting platform milling machine is good rigidity, can bear heavy load cutting work. 2, CNC horizontal type lifting platform milling machine with enough power and wide range of spindle speed.
High speed cutting can be made by using hard alloy cutter, and the cutting efficiency can be fully played. 3, the spindle speed has impulse device, easy to change, the machine can quickly and effectively brake. 4, machine tool and important mechanical parts are manufactured from the alloy steel, easy to wear and tear of
the parts are made of wear resistant material, Plastic guide rail , to ensure the machine has enough service life. 5.CNC horizontal lifting platform milling machine three motion are limiting device to ensure the safety of workers
and machine tool, but also can be used as the multi machine tool management. 6, CNC horizontal lifting platform milling machine has a perfect lubrication system, Important transmission parts
and bearings have perfect lubrication device,At the same time an set indicator for Conduct regular inspection 7, Good reliability, economical and practical, the price function than good Application : 1. Horizontal lifting platform milling machine is available on a variety of cylindrical milling cutter, wafer type milling
cutter, angle cutter, molding cutter and milling processing of various plane, inclined plane, such as grooves. 2. If you use the appropriate milling machine accessories, processing gear, cam, an arc-shaped groove and a
helical surface of special shape of parts, 3. Configuration universal milling head, circular table and indexing head and so on milling attachment,Can further
expand the scope of the milling machine, this machine is applicable to all kinds of mechanical processing industry. Product Parameters

CNC milling machine	XK7132	XK7136
Table size	800x320	1250x360
Max. table load	300kg	400kg
T slot qty-width*distance	3-14x110	3-14x80
spindle speed	60-8000 r p m	60-8000 r p m
spindle nose to table surface	125-520mm	120-580
Spindle center to Column surface	360	460
Spindle taper	BT30/BT40	BT40
Main motor power	3.7kw (servo)	3.7kw (servo)
X axis travel	500mm	900mm
Y axis travel	320mm	360mm
Z axis travel	400mm	460mm
X/Y/Z axis rapid feed	8/8/6m/min	5/5/4m/min
Positioning accuracy	±0.01mm	±0.01mm
Repeatabeility accuracy	±0.005mm	±0.005mm
Net Weight	2650kg	2800kg
Overall Dimension	1900x1800x2100	2220x1850x2250
