Used Hot Sale Foton Disel Mini Truck-Mounted Dump Trucks Hydraulic Hook Arm Truck Garbage Transfer 5036

Product Description

Please note!
The pictures shown as below are new, if you would like a used same model for cheaper price, please contact us for details!
Product DescriptionUsed Hot Sale Foton Disel Mini Truck-Mounted Dump Trucks Hydraulic Hook Arm Truck Garbage Transfer 5036

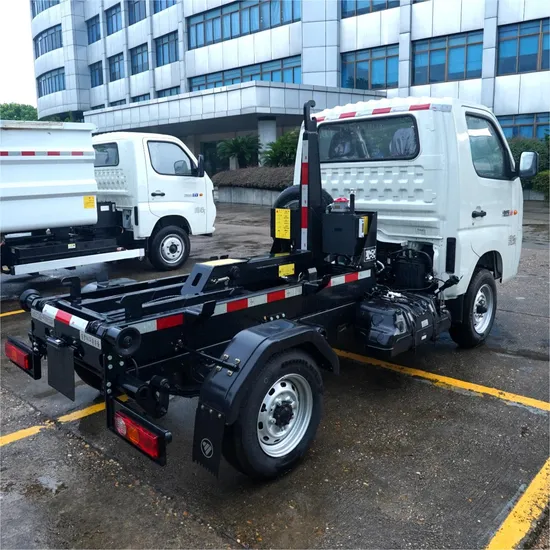

BJ5036ZXXE6-P1 detachable garbage truck, also known as hook arm car, pull arm hook; Can be equipped with multiple cars, with self-unloading function, hydraulic operation, easy to dump, simple operation. It is a special vehicle for town, street, industrial and mining enterprises, residential town bagging, bulk household garbage collection and transfer operations.
The car can pull the garbage in the garbage compartment and the garbage compartment together to the car to carry away, but also can be self-unloading operation, reducing the labor intensity of workers. The collection and transportation mode of the garbage truck is the widely used garbage collection and transportation mode in the world at present, which can realize one car and multiple boxes, greatly reducing the equipment cost and space. The function of the special device is powered by the automobile engine, which is realized manually or electronically by the hydraulic mechanism. The car body is made of high quality carbon steel plate fully sealed welded structure, which has the advantages of high strength, light weight and no secondary pollution.
Scope of application
Suitable for towns, streets, industrial and mining enterprises, residential towns bagging, bulk household garbage collection, transport operations of special vehicles.
Product Parameters

Main Technical Parameters
Product name	Truck-mounted dump trucks
Trademark	Proco
Product Model	BJ5036ZXXE6-P1
Chassis model	Foton BJ1030V5JV4-51
GVW	3.5T
Gross mass(Kg)	3495
Rated mass(Kg)	1865
Overall mass(Kg)	1500
Overall Dimension(mm)	4220×1720×1920
Approach/Departure Angle(°)	22/28
Number of axles	2
Wheelbase(mm)	2400
Maximum speed(Km/h)	100
Number of tyres	6
Tyre size	175R14LT 8PR
Fuel type	Petrol
Emission standard	GB18352.6-2016 National VI
Engine model	Harbin Dong'an/DAM15KL, DAM16KL
Displacement(ml)	1498, 1597
Power(Kw)	85, 90
Upper technical parameters
System pressure (MPa)	16
Lifting capacity (T)	1
Tipping angle of self-discharging ( ° )	47
Hook centre height (mm)	1015
Outer width of compartment track (mm)	950
Distance from hook centre to rear wheel axle centre ( mm)	1800
Clearance height of compartment track ( mm )	≥115
Matching compartment ( m3 )	2.5
Loading and unloading operation time (s)	≤60
Self-unloading operation time (s)	≤60

Detailed Photos
The main advantages of the product
1. Excellent performance
1) Reasonable working speed and excellent components, control the working noise of the vehicle, reduce noise pollution;
2) Efficient electric control operation, easy to understand.
2. High security
1) The bottom frame of the draw-arm hook is directly rolled from 510L high-strength steel, and the bottom frame can be divided into one with the truck chassis beam.
2) The Angle joint of the hook arm is strengthened to increase safety and service life.
3) Carabiner: high strength design, using Q550D material, thickness 25mm. The contact surface curve fits the actual motion trajectory, and the loading and unloading of the car are simpler and more reliable.
4) The special anti-slip design of the hook ensures that the hook arm and the turnover frame can be reliably locked during the unloading process.
3. Good quality
Hydraulic oil pump and hydraulic cylinder are all domestic well-known brands, and the products are equipped with high-quality low-noise valve sets with proportional characteristics, which can effectively eliminate the fluid impact noise at the moment of hydraulic reversing, and improve the nuisance problem of the current garbage truck product operation. The key components of the electrical system are all well-known domestic components, such as proximity switches and control buttons, which improve the reliability of garbage trucks.
4. Easy to operate
The operation control box is installed in the cab, which is very convenient to operate and use, and the operator can complete the unloading without getting out of the car.
FAQ
1. Q: How about the quality of your trucks?
A: Wuhan Ring Valley Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price?
A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.
