China PF Impact Crusher for The Cement Production Design

Product Description

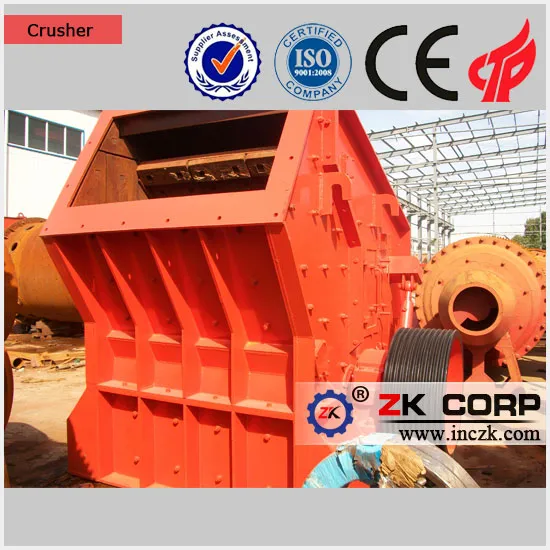

China PF Impact Crusher for The Cement Production Design
Impact crusher is suitable for crushing hard materials, high crushing ratio, the crushed material is cubic grains and other advantages, and has the advantages of small size, simple structure, large production capacity, uniform product size.
(1) the counterattack plate and plate hammer clearance adjustment convenient, effective control of the particle size, particle shape;
(2) and high production efficiency, small abrasion, high comprehensive benefits;
(3) has the advantages of simple structure, small volume, light weight;
(4) big crushing ratio.
PF impact crusher is composed of a machine body, a transmission mechanism, a rotor, hammer counterattack plate, etc...
PF impact crusher is a broken machine which use of impact energy to crushing material. When working, under the driving of the motor, the rotor runs at high speed. When the ore into the crushing chamber, by high-speed rotary hammer impact crushing, and at a high speed into the counterattack plate. Because the impact plate, ore again by crushing, be counterattack plate bounce back again by the hammer blow ore, so repeatedly until the material is less than the gap between the hammer and the back plate, qualified products from the lower discharge.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com/ & http://hnzkjq.en.made-in-china.com/
24-hour Free Sales Consulting Phone: 86-18937185591.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com
Rotary Kiln: http://hnzkjq.en.made-in-china.com
Preheater: http://hnzkjq.en.made-in-china.com
Cement Mill: http://hnzkjq.en.made-in-china.com
Rotary Dryer: http://hnzkjq.en.made-in-china.com
Raw Mill: http://hnzkjq.en.made-in-china.com
Ball Mill: http://hnzkjq.en.made-in-china.com/grinding/582. h

model	Specifications	Inlet size( mm)	Maximum material size( mm)	Yield( t/h)	Power( kw)
PF-0807	Φ850x700	400x730	300	15-30	30-45
PF-1007	Φ1000x700	400x730	300	30-50	37-55
PF-1010	Φ1000x1050	400x1080	350	50-80	55-75
PF-1210	Φ1250x1050	400x1080	350	70-120	110-132
PF-1214	Φ1250x1400	400x1430	350	130-180	132-160
PF-1310	Φ1300x1050	490x1170	400	80-140	110-160
PF-1315	Φ1320x1500	860x1520	500	160-250	180-260
PF-1415	Φ1450x1500	1145x1520	950	220-450	220-315
PF-1520	Φ1520x2000	830x2050	700	300-550	315-440

FAQ:
Q1. I are not sure whether your production information on made-in-china is true,
A: You can click our company website. Our website is http://hnzkjq.en.made-in-china.com/
Q2.I are not sure whether the quality of your production is good.
A:Welcome to visit our company. I will lead you to see the process of production in our workshop.
Q3.If I can not use your production, how will I do it?
A: We can send engineers to your site to help you.
Our service:
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory?level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with
you. We will provide you with the most suitable products with the reasonable price.
